Rotary table type LTA

91800A

nominal diameter

100

200

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Material Base plate: Aluminium
Housing: V2A
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Worm wheel: Wear-resistant bronze alloy
Worm shaft: CK45N hardened and grinded

Operating temperature -10 °C to +80 °C

Mounting position Any, preferably horizontal

Lubricant With bearing grease via grease nipples

Options Inductive proximity switch, flange/coupling to mount the motor, motorization

Accuracy
Speed
Ø-Range
Price

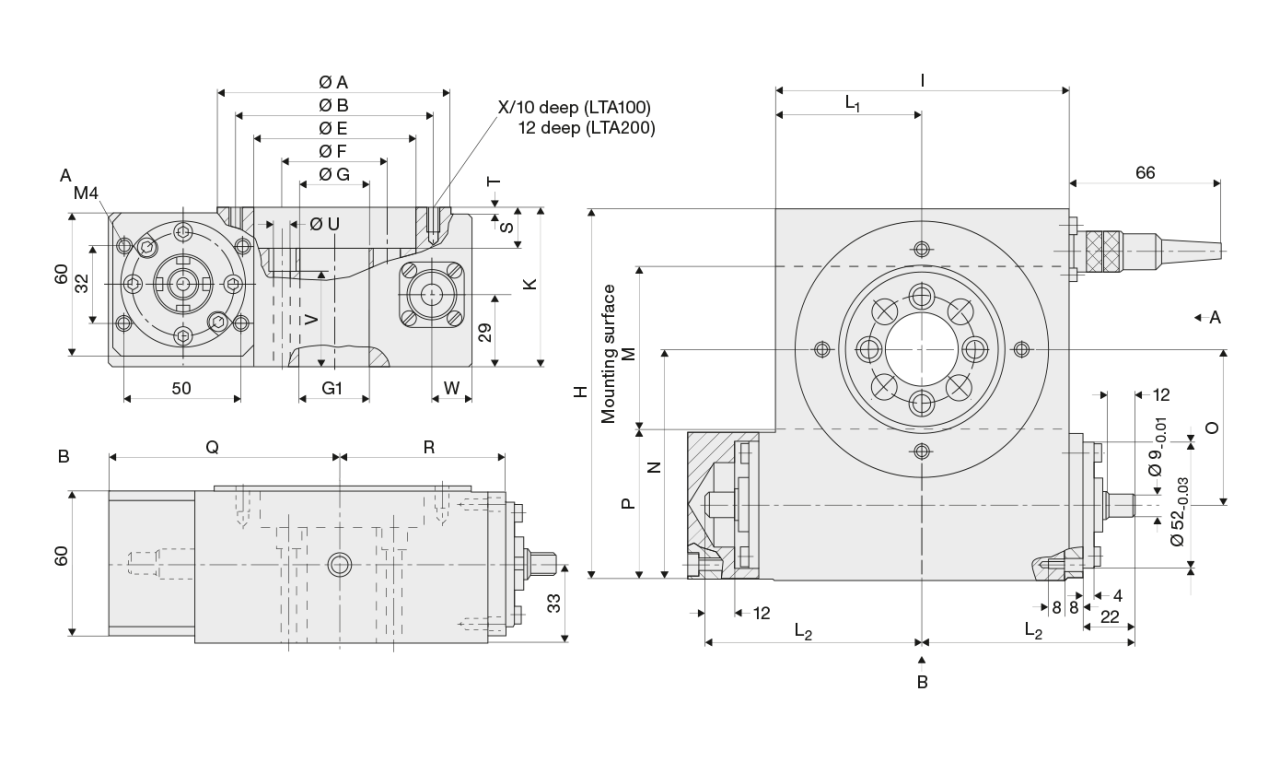

Data Table

Table 1
Name	Nominal Diameter Ø mm	Dimensions mm
	A	B	ØE^H7/_{6 tief}	ØF	ØG	ØG₁^H7_{12 tief}	H	I	K	L₁	L₂
LTA100	-	?	?	?	?	?	-	-	-	-	?
LTA200	-	?	?	?	?	?	-	-	-	-	?

Table 2
Name	Nominal Diameter Ø mm	Load Ratings kN		Dimensions mm
	A	C₀	C	M	N	P	Q	R	S	T	U	V	W	X
LTA100	-	-	-	-	-	?	?	?	?	?	?	?	?	?
LTA200	-	-	-	-	-	?	?	?	?	?	?	?	?	?

Table 3
Name	Nominal Diameter Ø mm	Tilting Moment Nm	Input Speed U/min	Reduction Ratio	Output Speed U/min	Weight kg
	A	C_0m	N_1 max	N_2 max
LTA100	-	289	?	?	?	5.5
LTA200	-	433	?	?	?	10
