Bearing with ground raceways

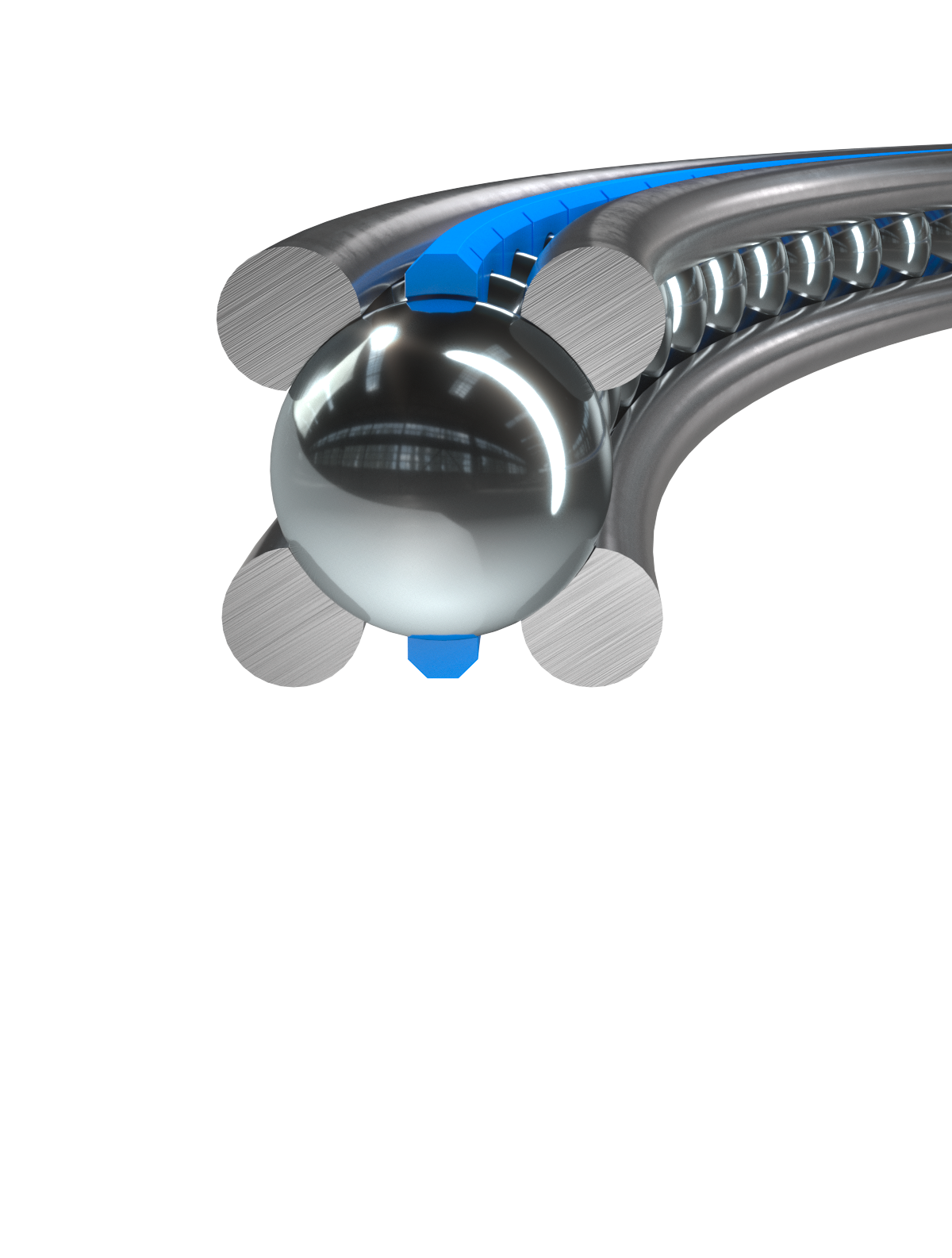

Ball bearing type LEL
68470A
Description
Franke wire race bearings of type LEL are suitable for high demands on running characteristics and accuracy. Due to the hardened and CNC-ground raceway as well as the ideal geometrical adaptation of ball and raceway radius, they have outstanding bearing characteristics.

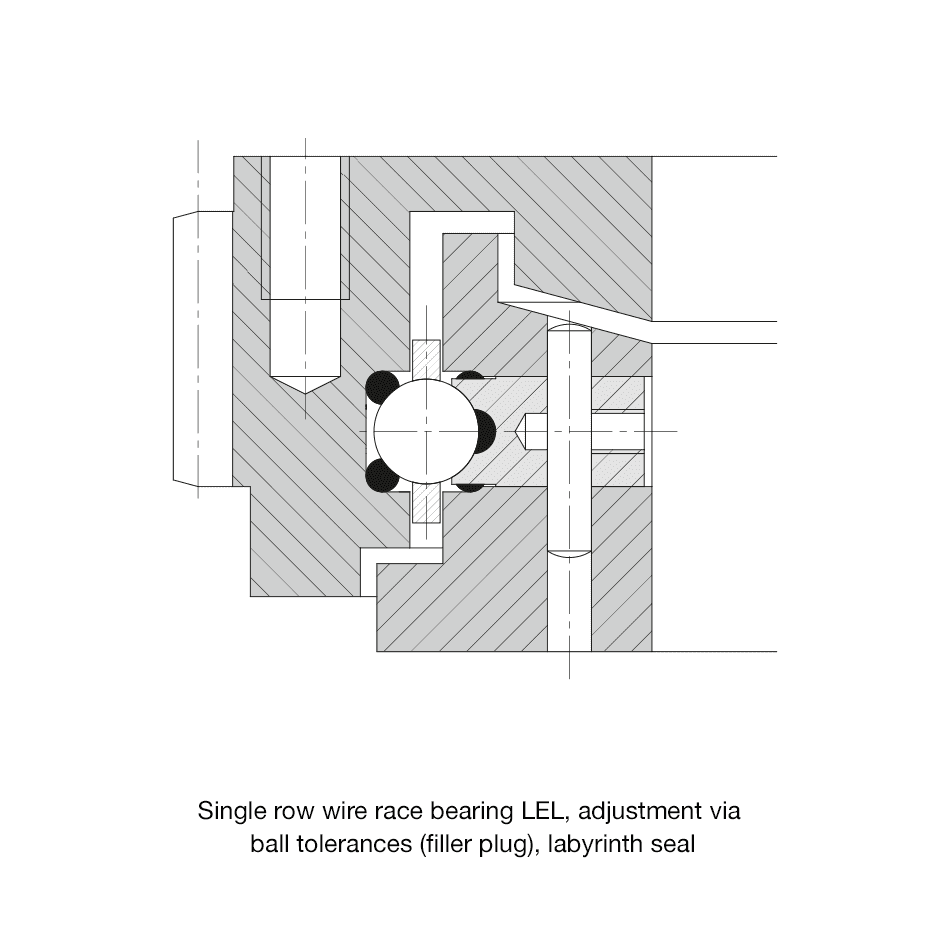

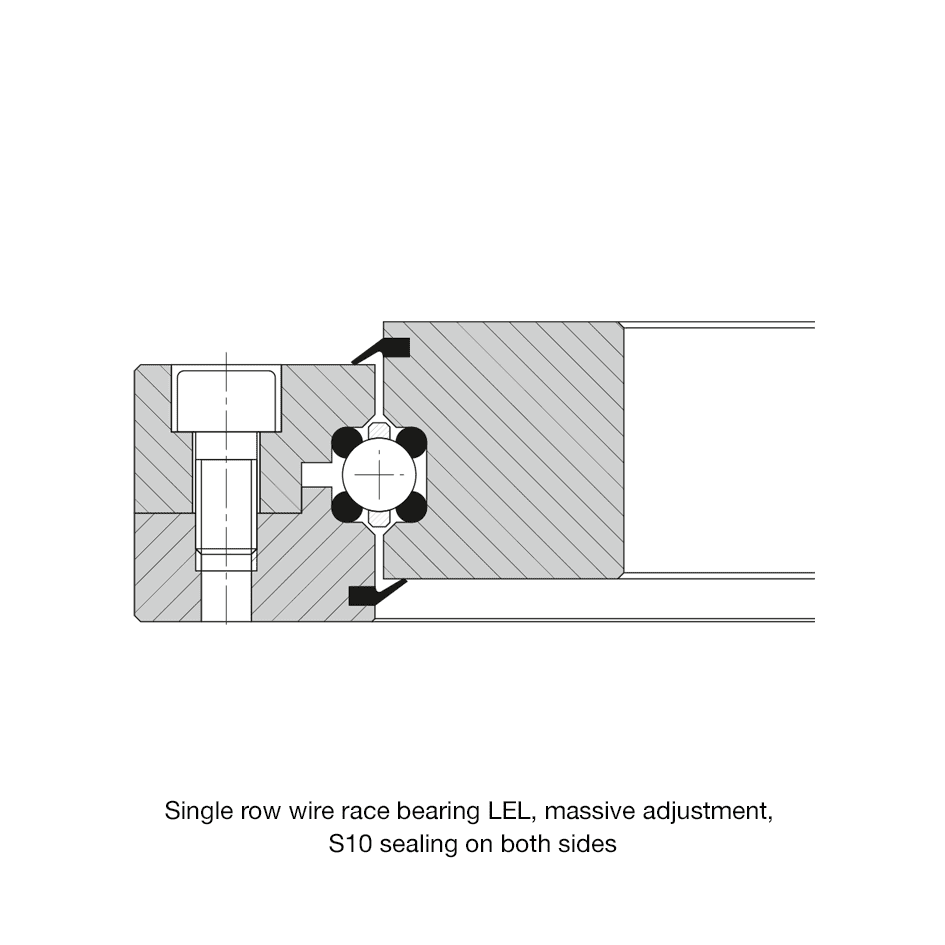

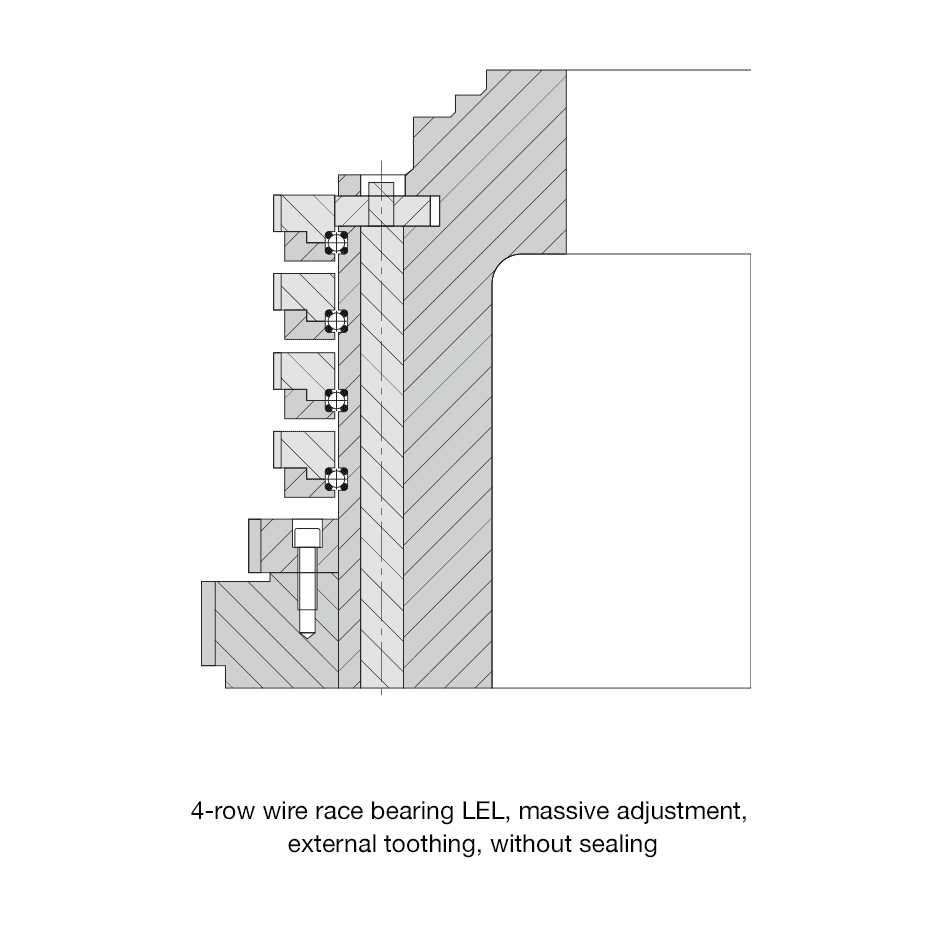

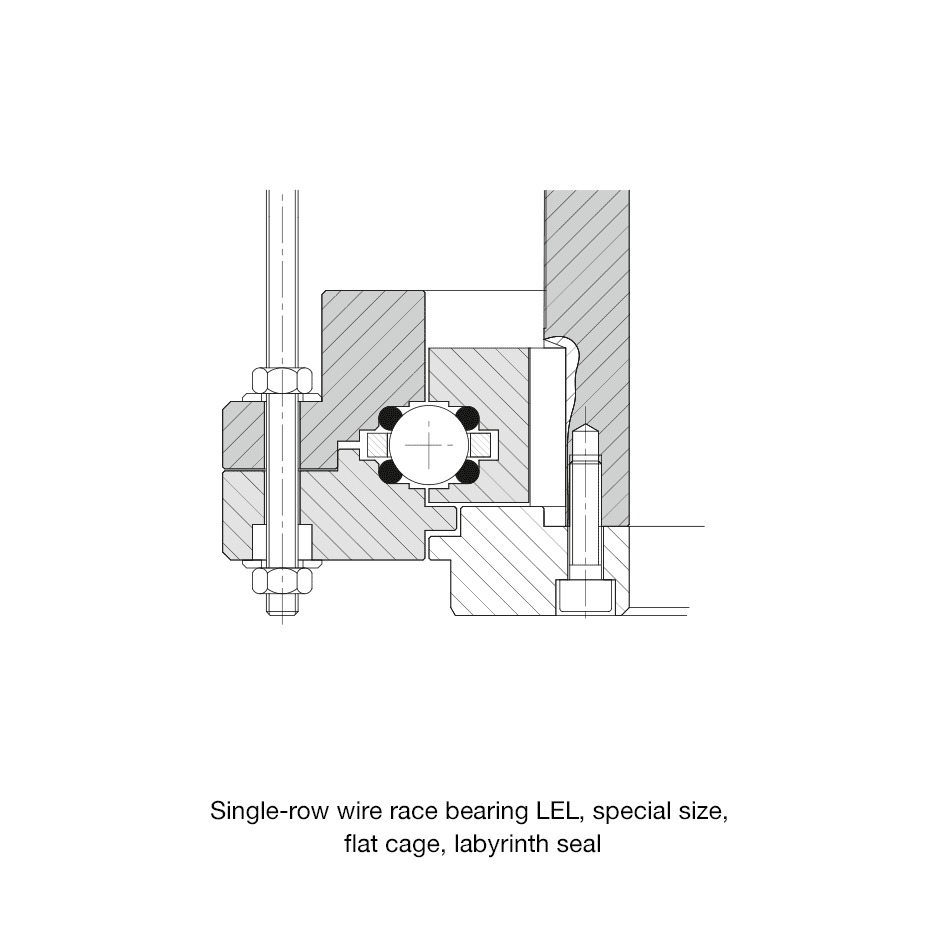

Wire race bearings of type LEL allow the greatest possible freedom of bearing design. The mounting space is between 5.9 mm and 20.9 mm. For special requirements, raceway thicknesses up to 20 mm and ball sizes up to 50 mm are possible.
Material
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel

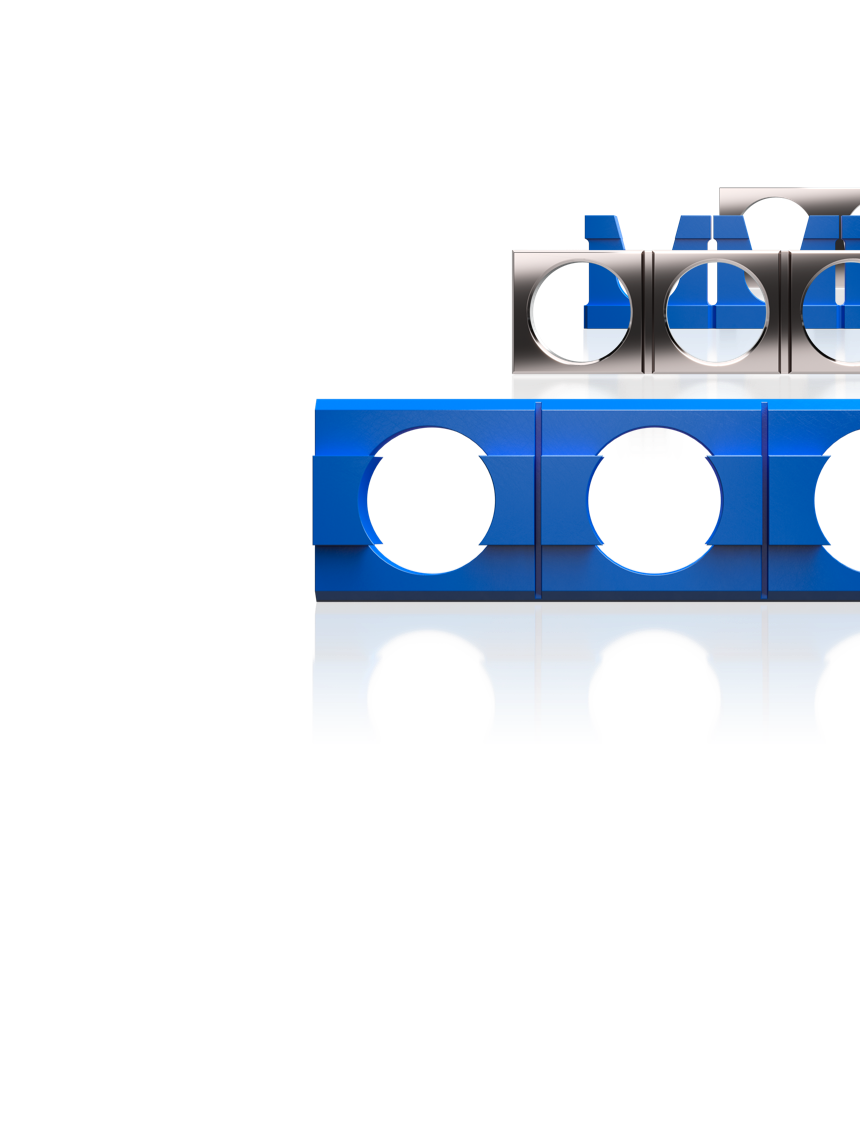

Cage: polyamide or thermoplastic polyurethane
Operating temperature –30 °C to +80 °C, briefly up to +100 °C

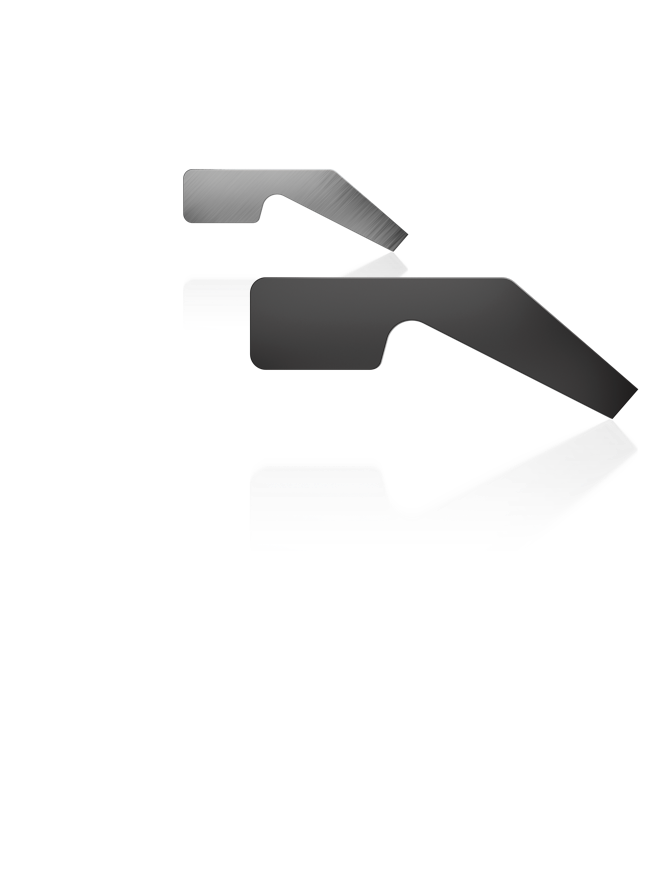

Peripheral speed Max. 5 m/s, without seals max. 10 m/s
Lubricant Klüber Isoflex Topas NCA52 (recommended)
| Smooth running | |
| Accuracy | |
| Speed | |
| Stiffness | |
| Assembly | |
| Price |
Data Table
| Load Ratings kn | Static Moment kNm | ||||||
|---|---|---|---|---|---|---|---|
| Name | KKØ mm | C0a | C0r | Ca | Cr | C0m | Weight kg |
| LEL1.5-0070 | 70 | 14 | 6 | 8 | 7 | 0,2 | 0,03 |
| LEL1.5-0080 | 80 | 16 | 7 | 8 | 7 | 0,3 | 0,03 |
| LEL1.5-0090 | 90 | 18 | 8 | 8 | 7 | 0,4 | 0,04 |
| LEL1.5-0100 | 100 | 19 | 9 | 9 | 8 | 0,5 | 0,04 |
| LEL1.5-0110 | 110 | 21 | 10 | 9 | 8 | 0,6 | 0,04 |
| LEL1.5-0120 | 120 | 23 | 11 | 9 | 8 | 0,7 | 0,05 |
| LEL1.5-0130 | 130 | 26 | 12 | 10 | 8 | 0,8 | 0,05 |
| LEL1.5-0140 | 140 | 28 | 13 | 10 | 9 | 0,9 | 0,06 |
| LEL1.5-0150 | 150 | 30 | 14 | 10 | 9 | 1,0 | 0,06 |

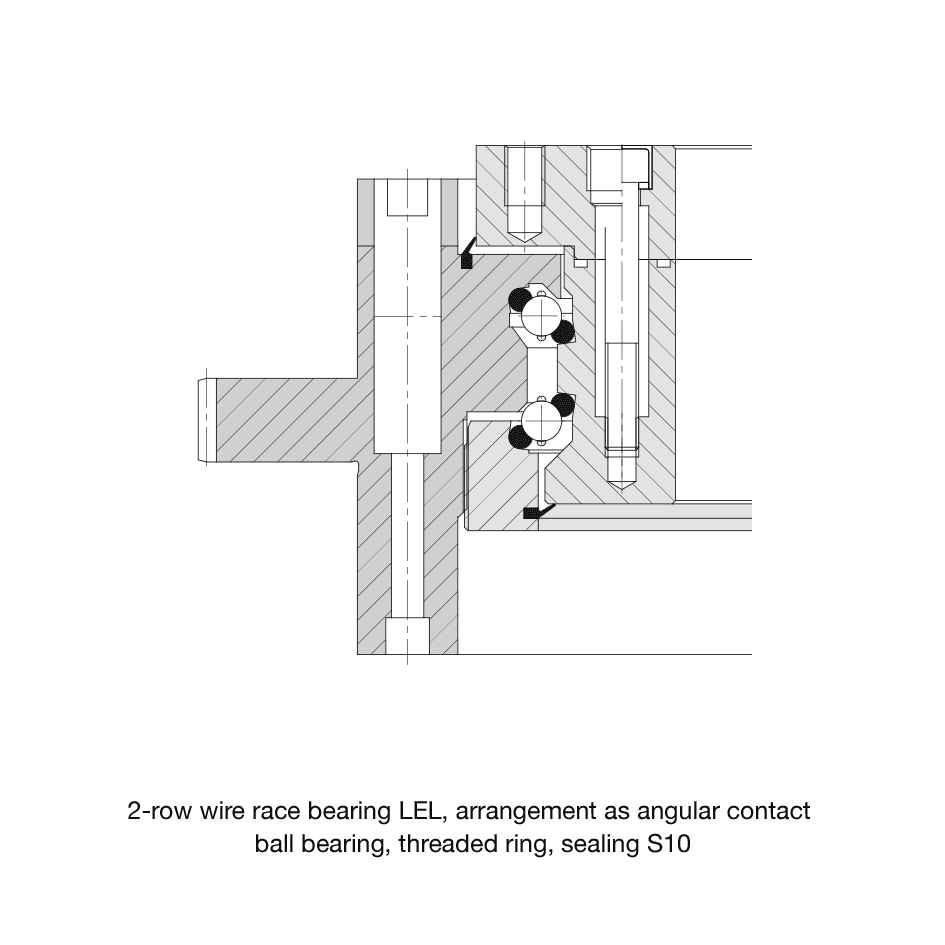

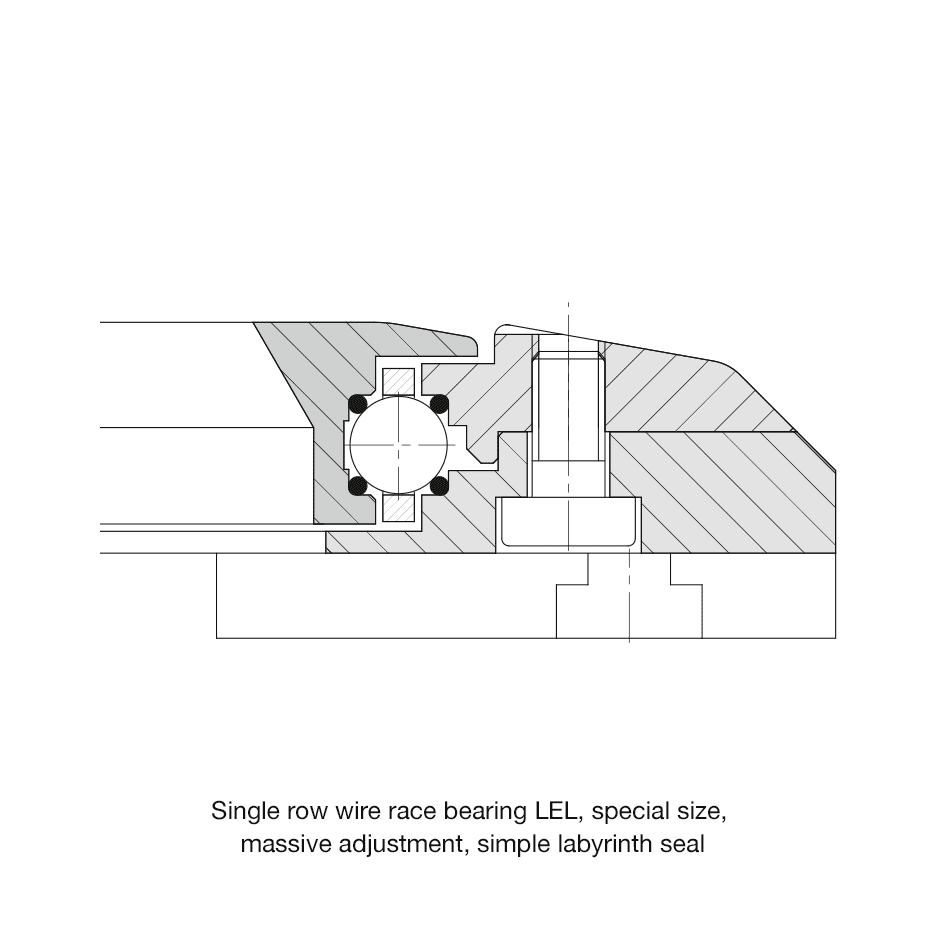

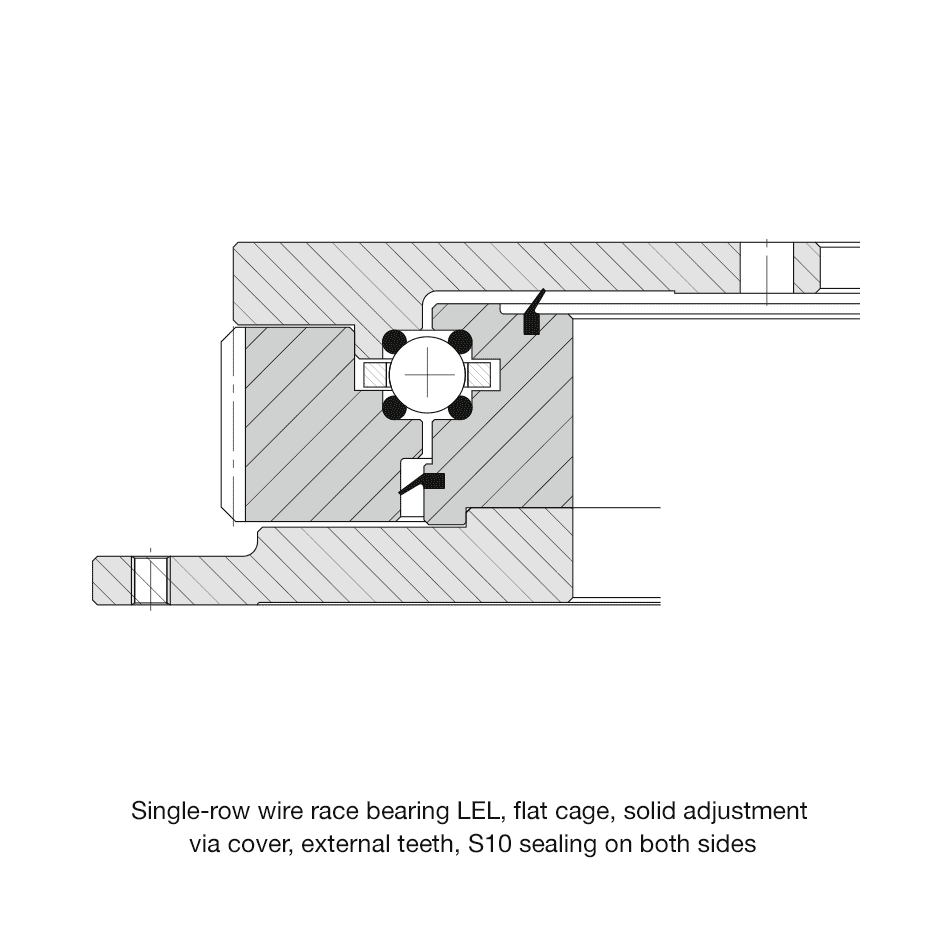

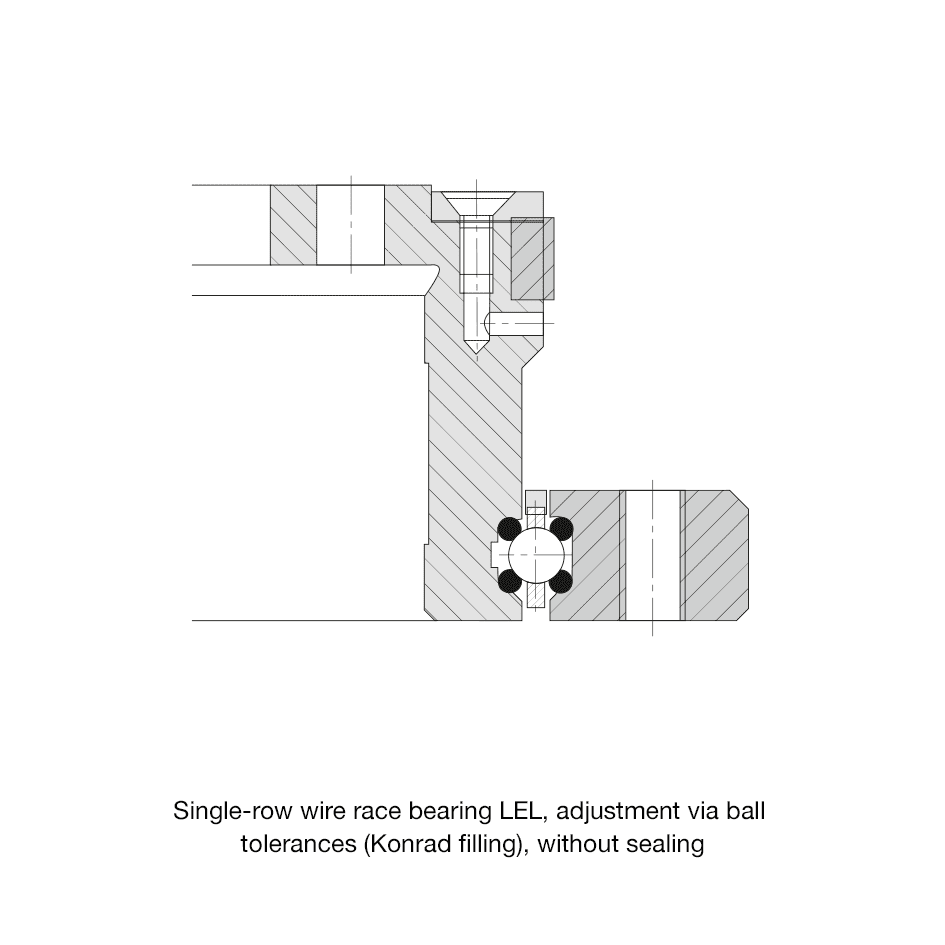

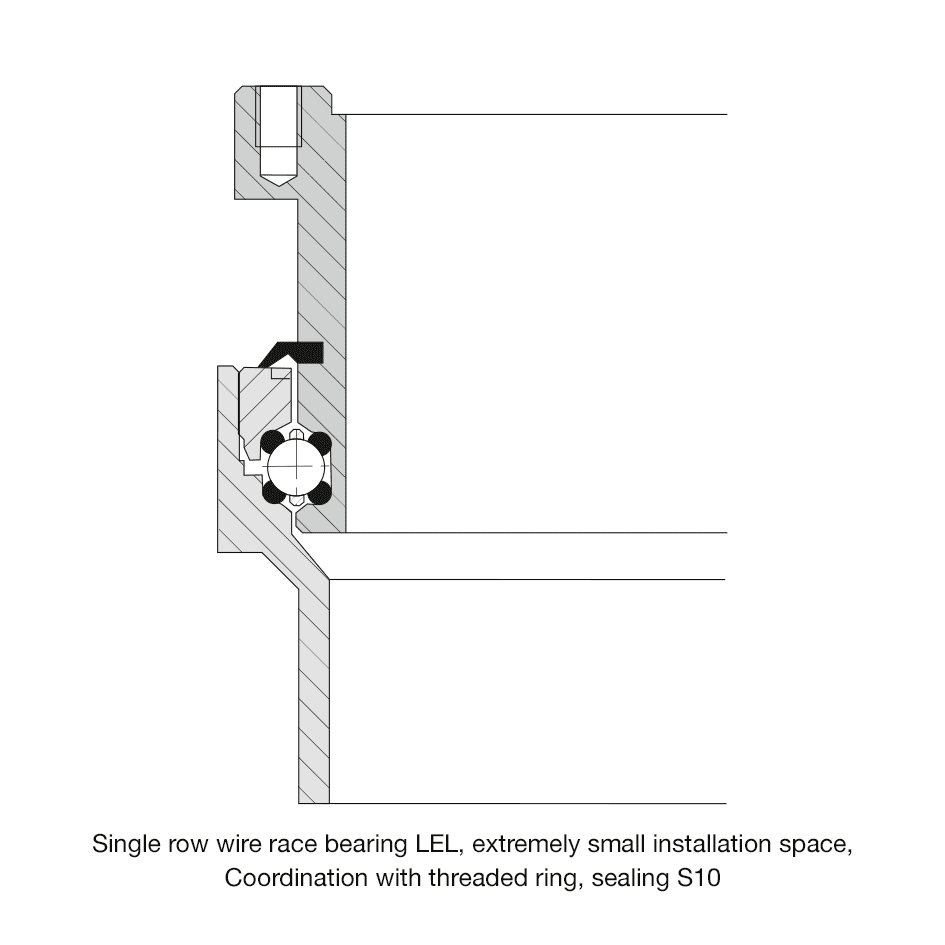

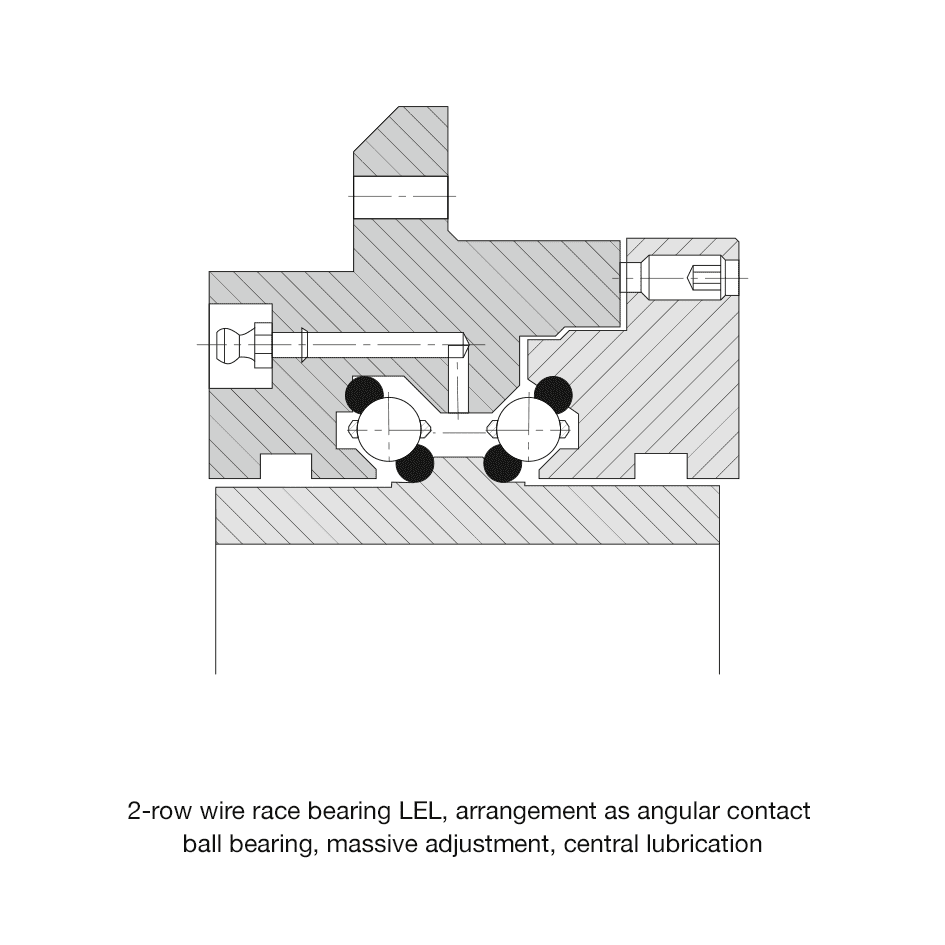

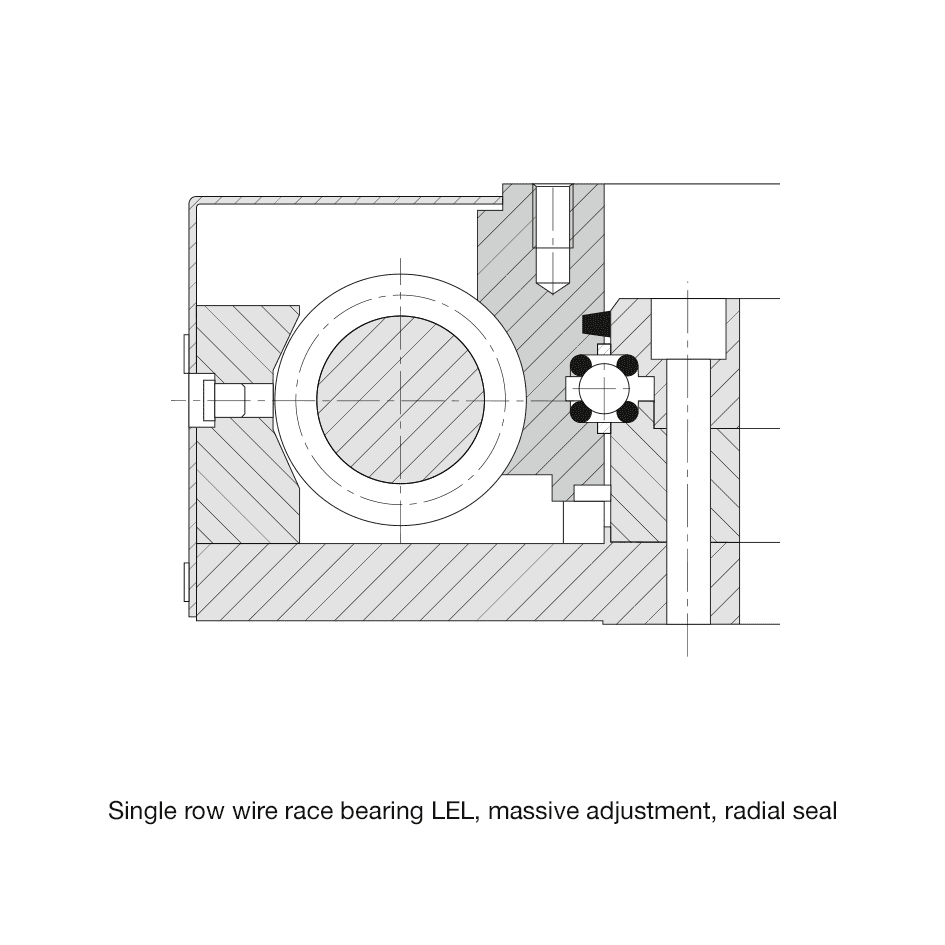

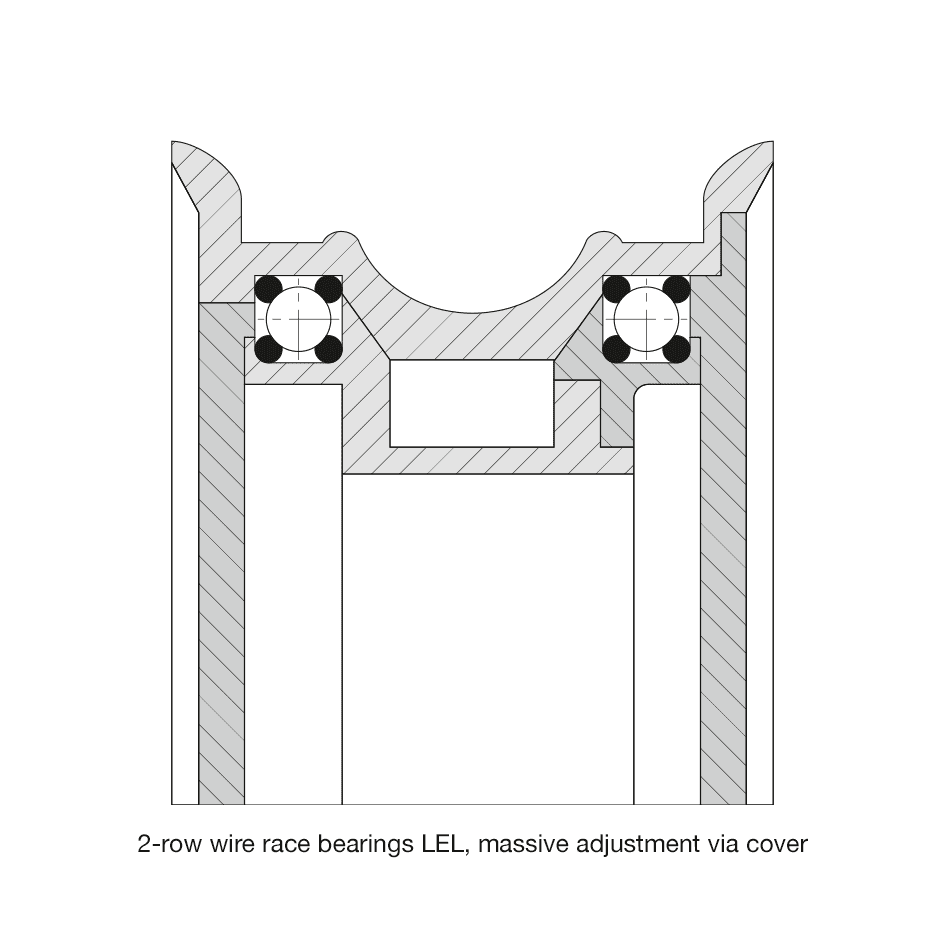

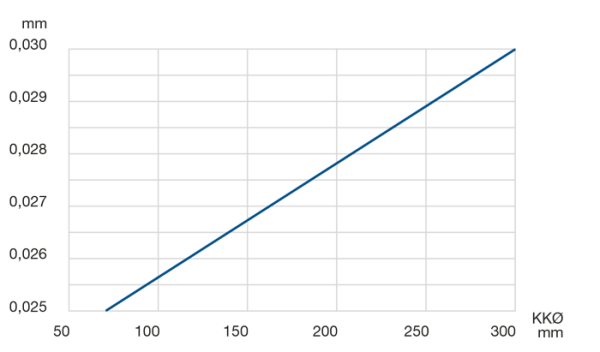

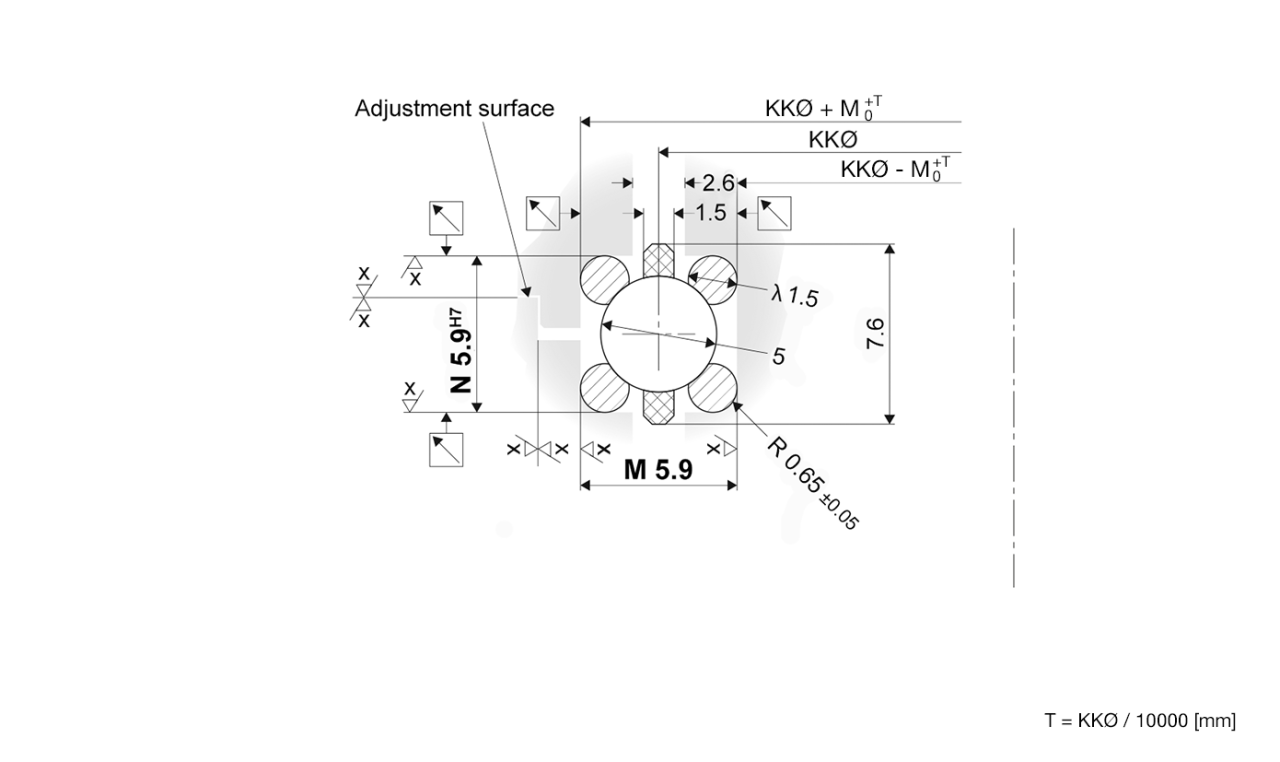

Radial and axial runout accuracy

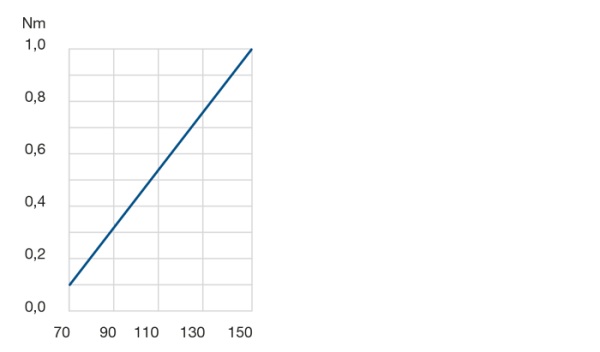

Rotational resistance
