Slim Bearing with profiled raceways

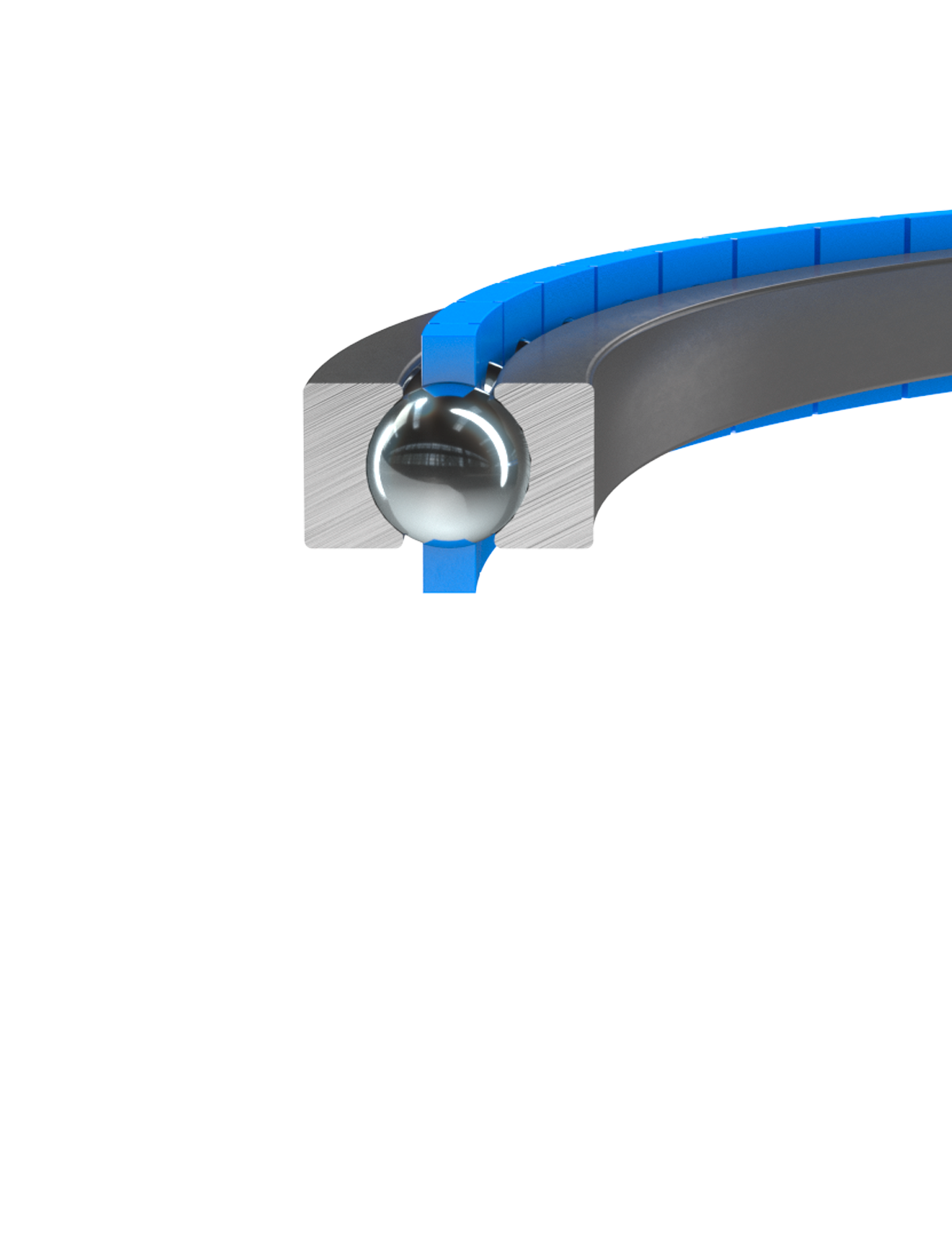

Slim bearing type LSA

97206A

LSA4-04.0

Type Selection

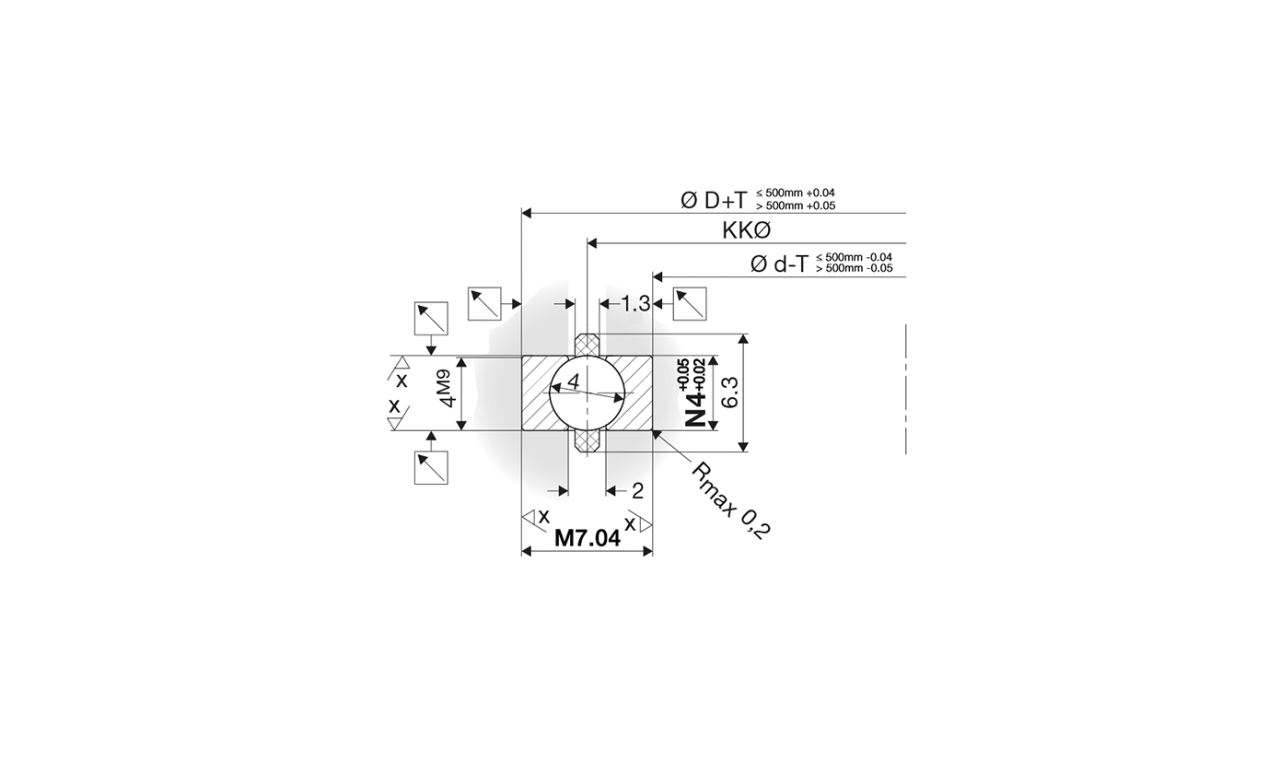

Dimensions and Data Tables

Unit price: -,- EUR
Price -,- EUR

Description

Franke slim bearings of the type LSA convince by their smooth running, extremely compact installation space, simple mounting and favourable price. Slim bearings of type LSA consist of an inner and outer race with hardened and profiled raceways and a plastic cage with retained balls. The rolling elements rest against the raceways at two points each, thus maintaining the 4-point system. The raceways are split and can therefore be changed elastically in diameter for installation.

Material Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Cage: polyamide or thermoplastic polyurethane

Operating temperature -20 °C to +80 °C, short-term up to +100 °C

Peripheral speed Max. 5 m/s, without seal max. 10 m/s

Lubricant Shell Gadus S3 V220 C2

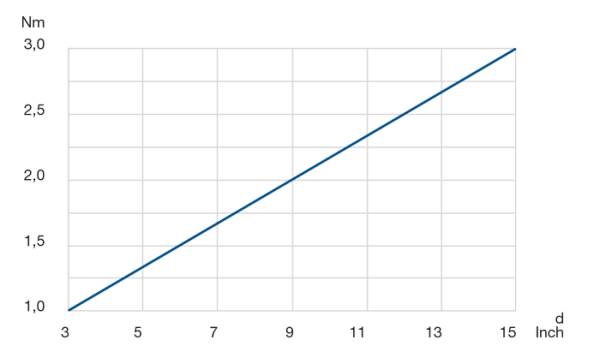

Smooth running

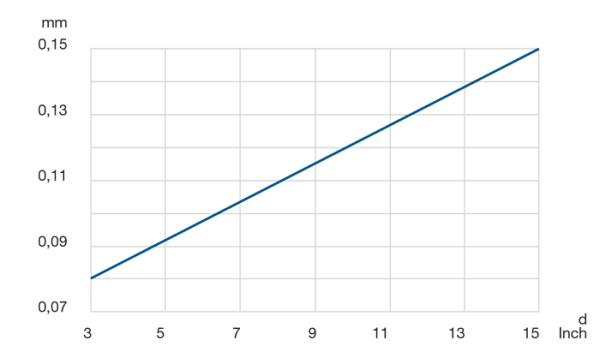

Accuracy
Speed
Stiffness
Assembly
Price

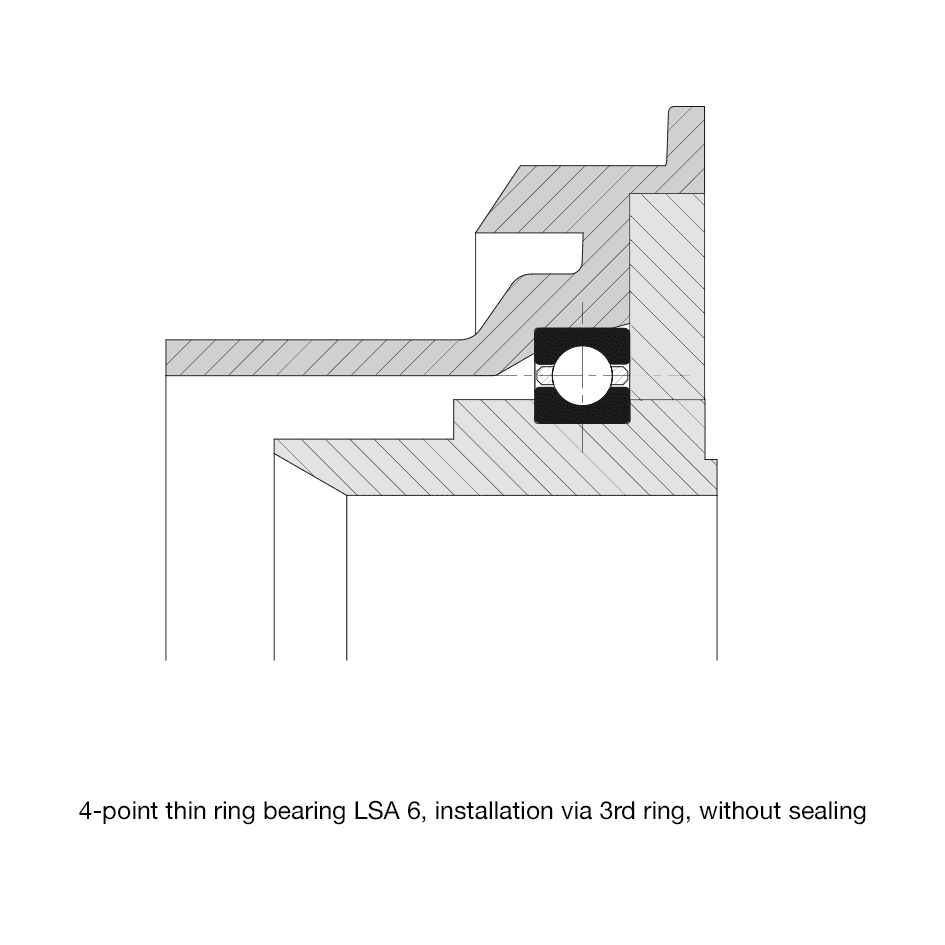

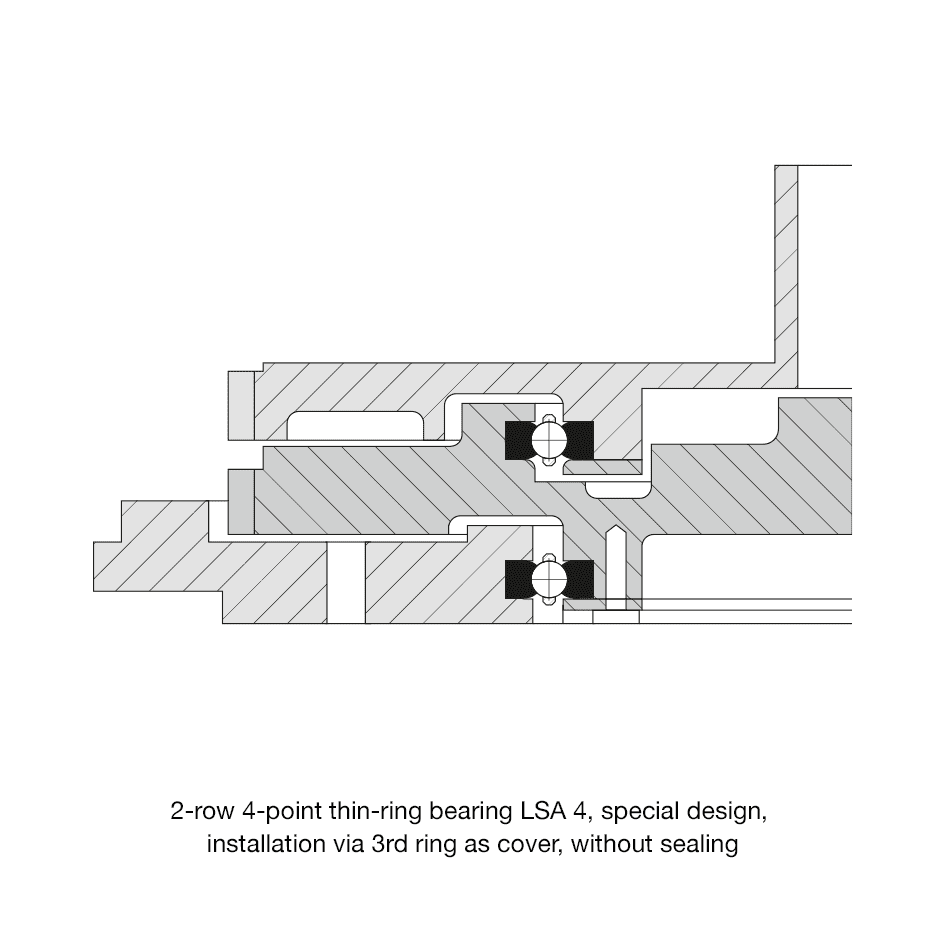

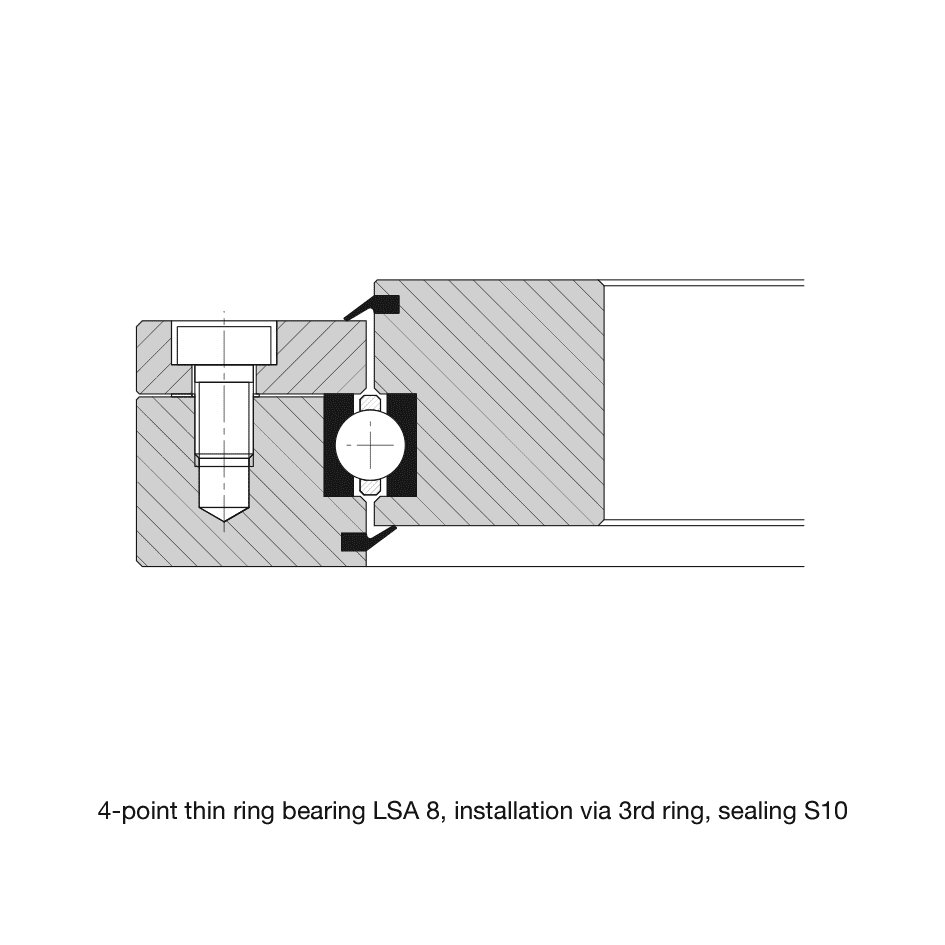

Design examples
