Linear guides: tailored to your requirements

Franke linear guides can be customised to suit your application. The geometry, material, number or arrangement of the rollers can be freely selected depending on the installation situation and load.



Whitepaper linear systems

Special edition innovative linear guides

Discover in our whitepaper what the special features of this technology are and how individually it fulfils every customer requirement.

Rely on maintenance-free linear systems with consistent performance in the future.

Download special edition linear guides

Individual



For example, you get linear systems with these properties:



Divider
Non-magnetic

amagnetic

Food-safe

food-compatible

Dynamic

highly dynamic

Lubricant-free

lubricant free

Clean room compatible

suitable for cleanrooms

Temperature-resistant

extreme temperature resistant (both hot and cold)

Colour anodised

anodized in colour

Electrically insulated

electrically isolated

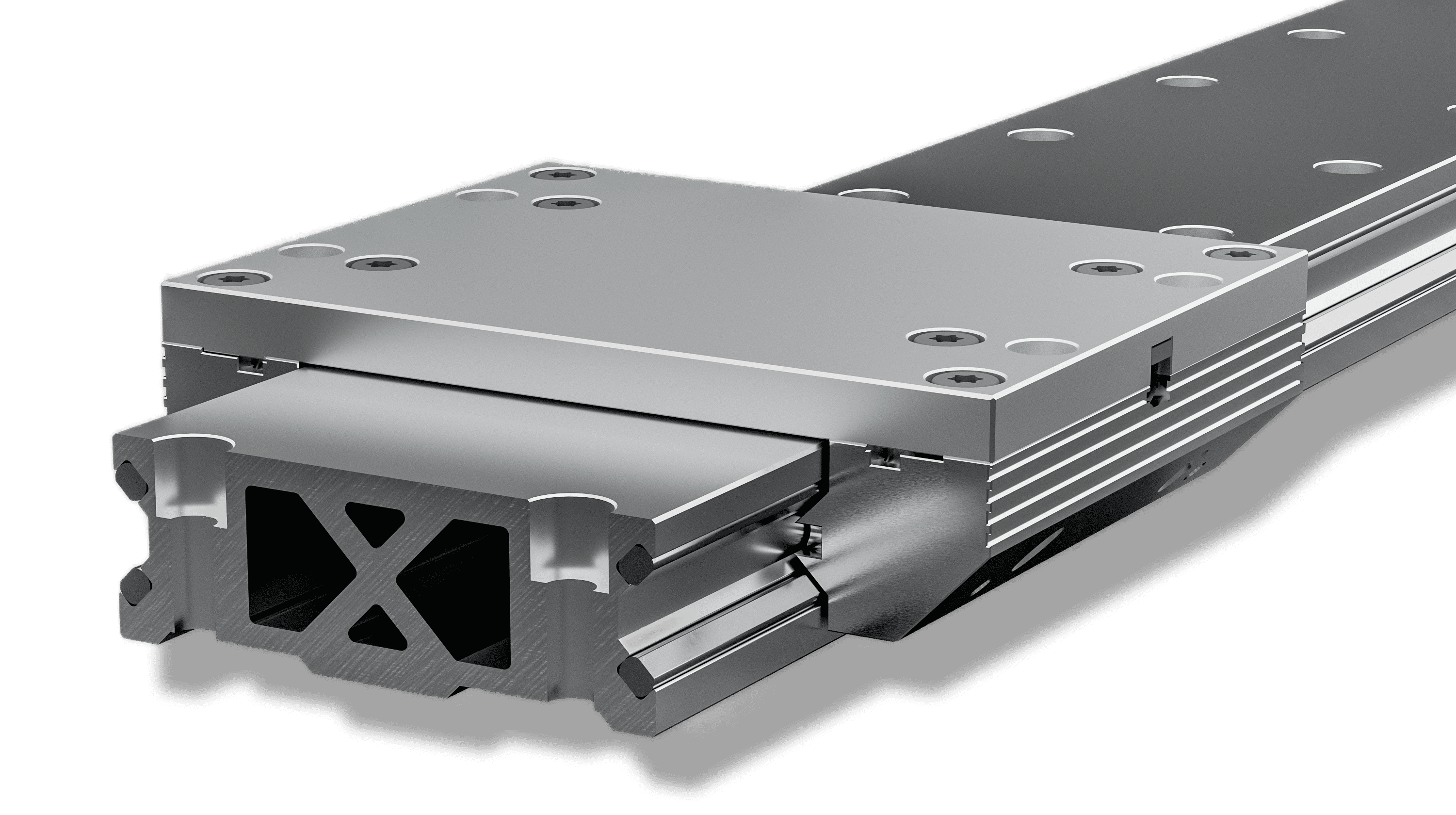

Linear guide profiles and linear rails

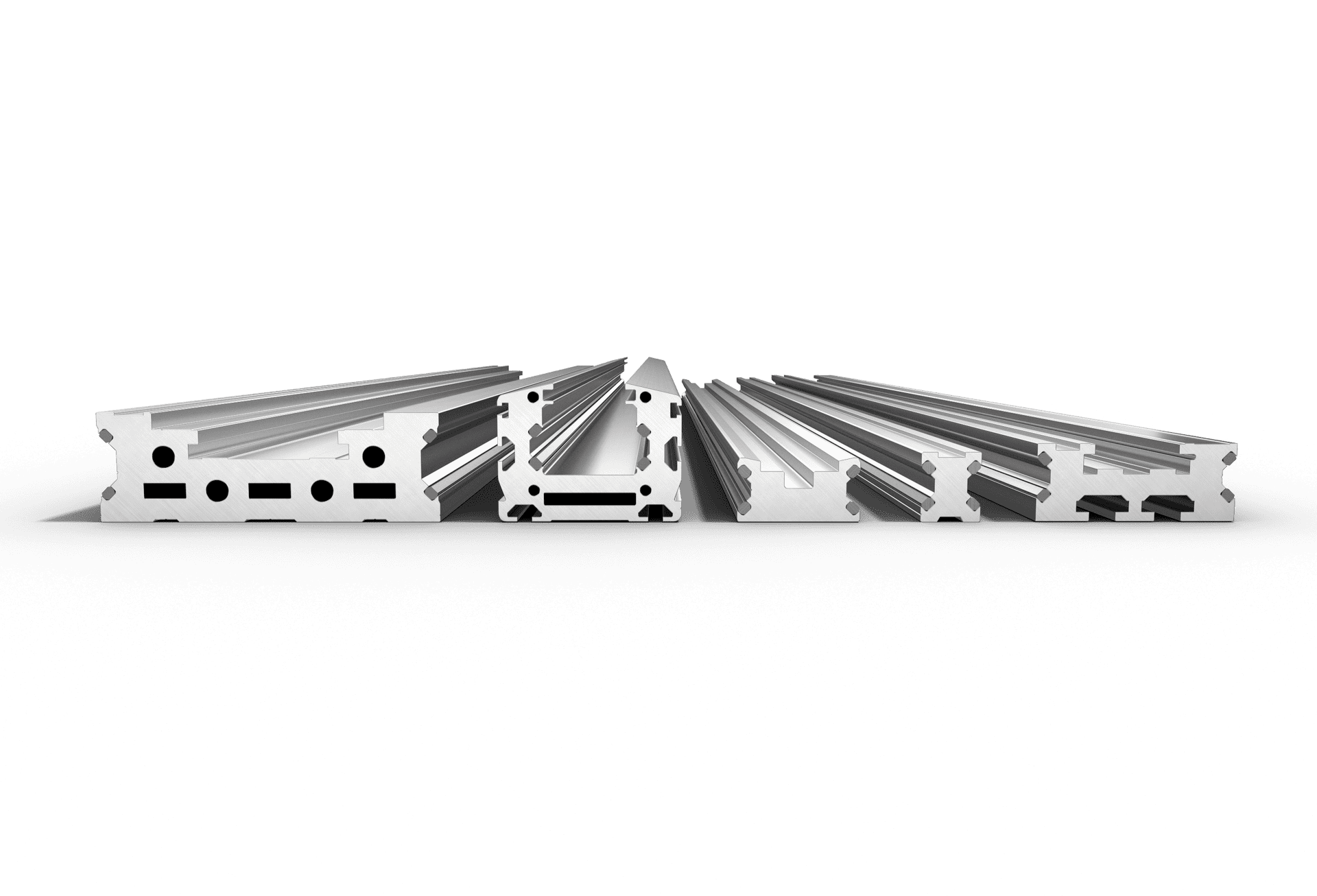

Free choice in profile design

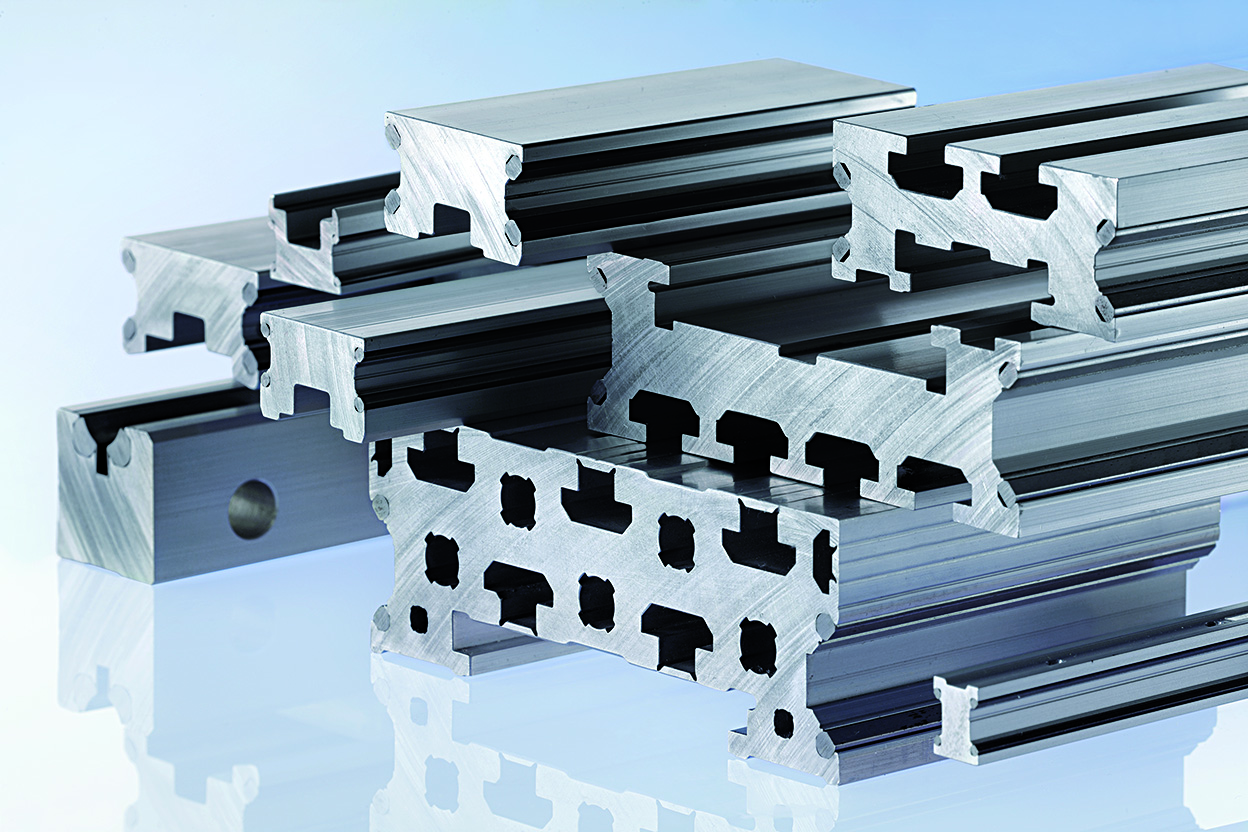

Franke wire raceways can be applied to almost any aluminium profile. This means that you are free to choose which profile you would ideally like to use for your application.

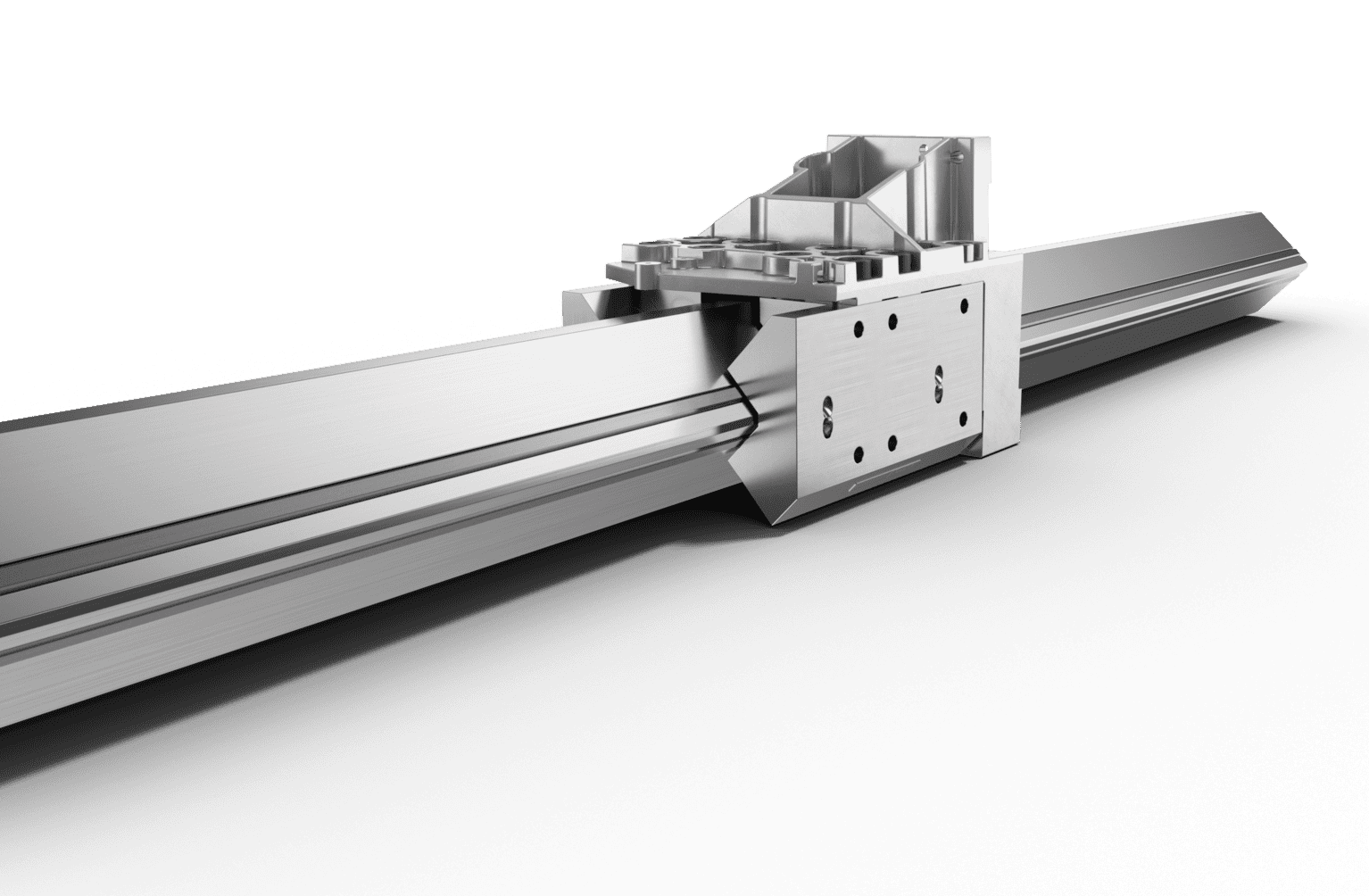

Linear guide with individual cassette shape

Individual cassette designs

Cassettes and roller shoes can be designed as you need them for your application. For example, holders for drive spindles can be integrated.

Length from 64 mm to ∞

Franke manufactures guide rails from 64 mm up to a length of 4,000 mm. Lifting distances over 4,000 mm are realized by coupling several rail profiles.



Linear guide profile

Best practice: Customised linear guides in use

Special length slider with a larger number of rollers for high loads.

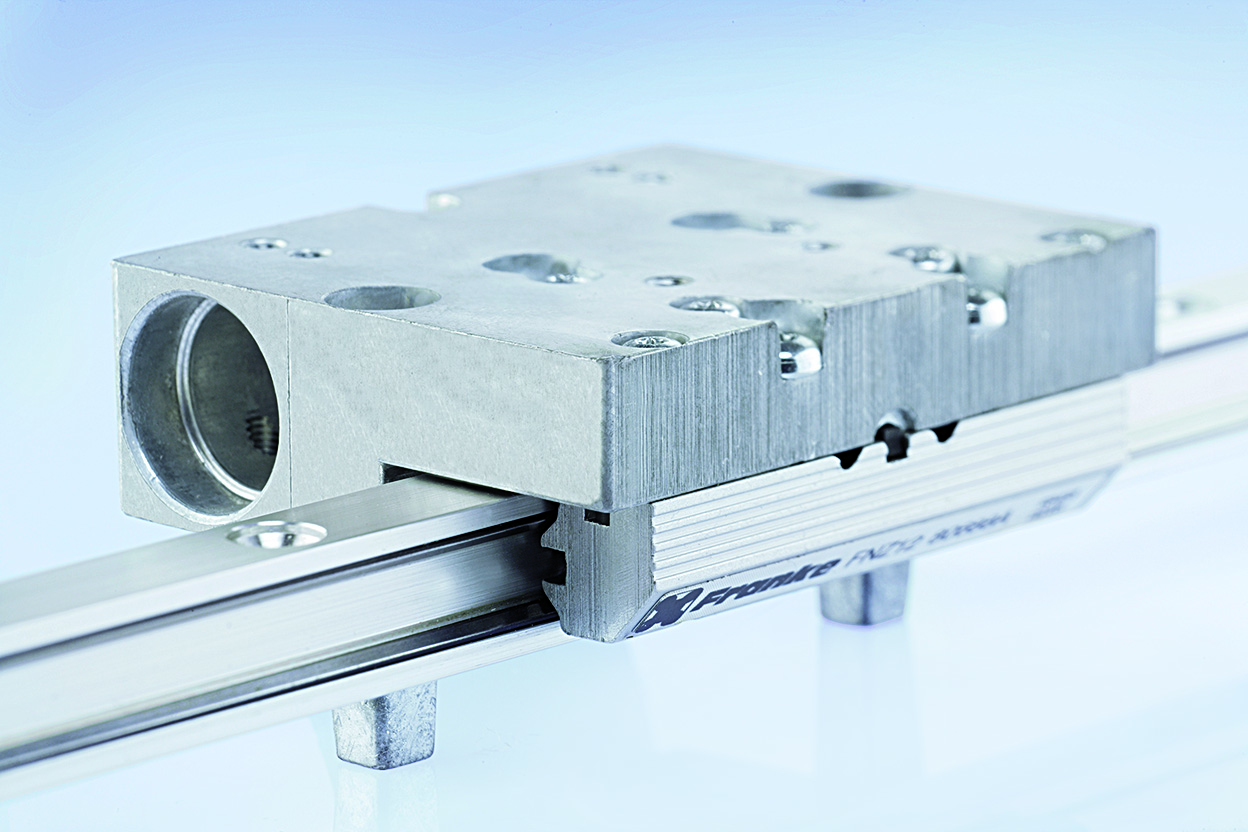

Slider with special plate for mounting a drive spindle.

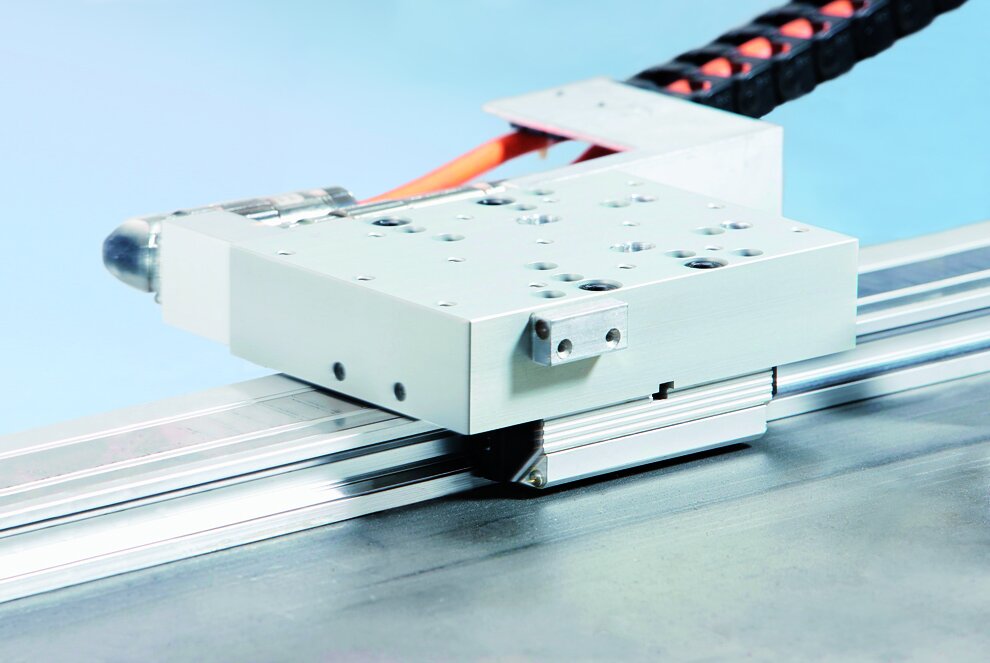

Direct drive consisting of a wide rail with integrated magnetic strip and motorised carriage.

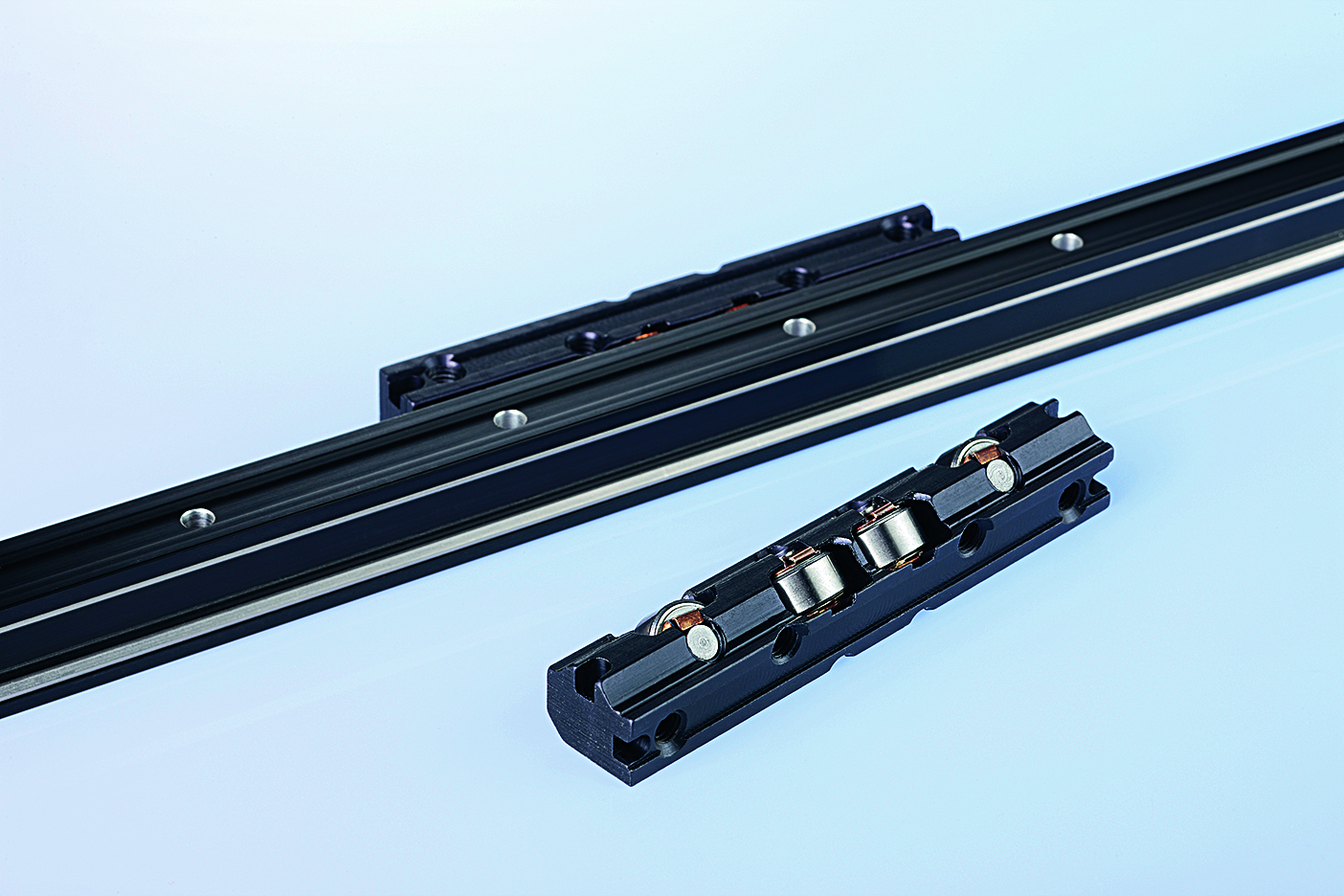

Extra narrow roller shoes anodised black on customer request.

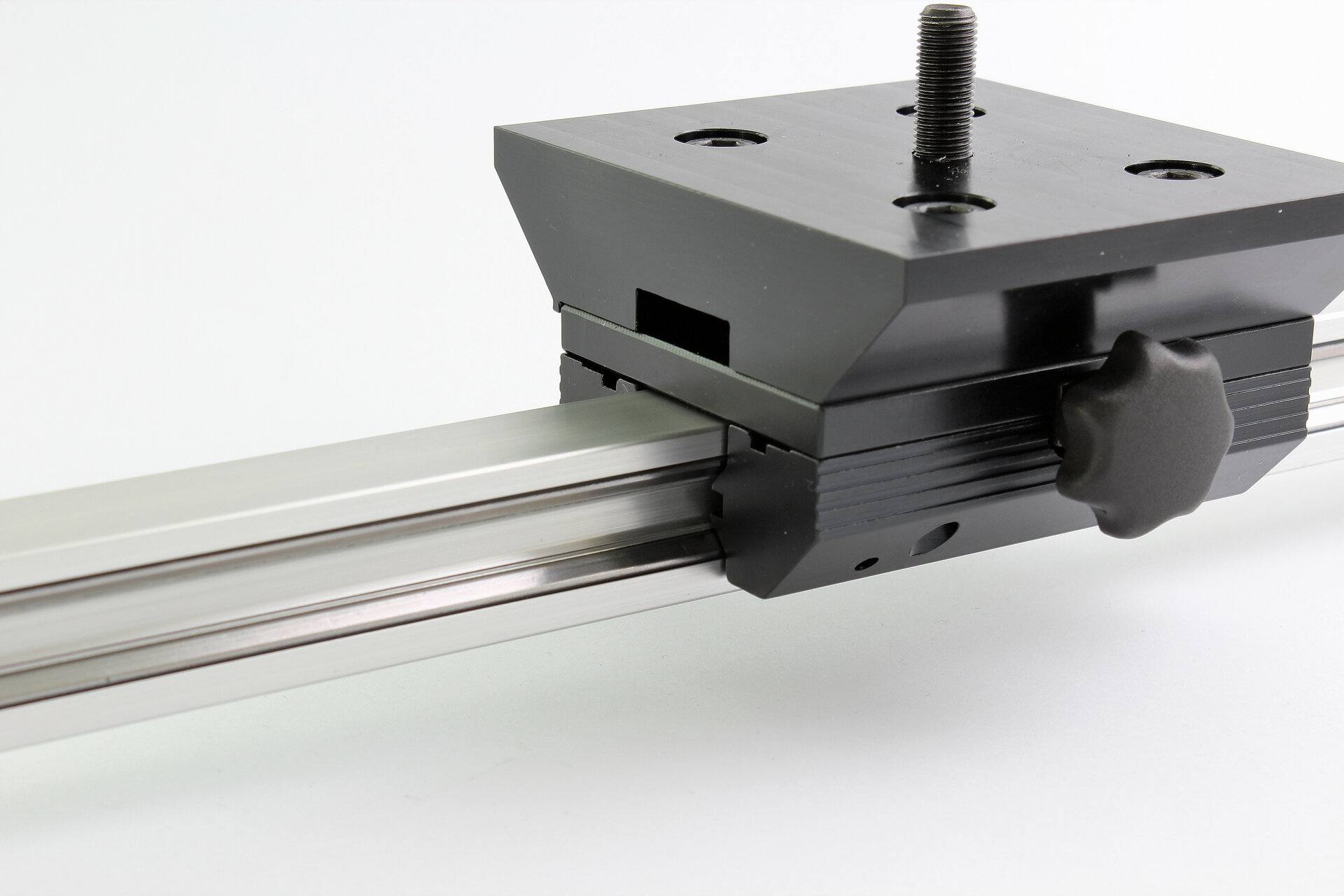

Special trolley as camera slider with connection thread for tripod heads.

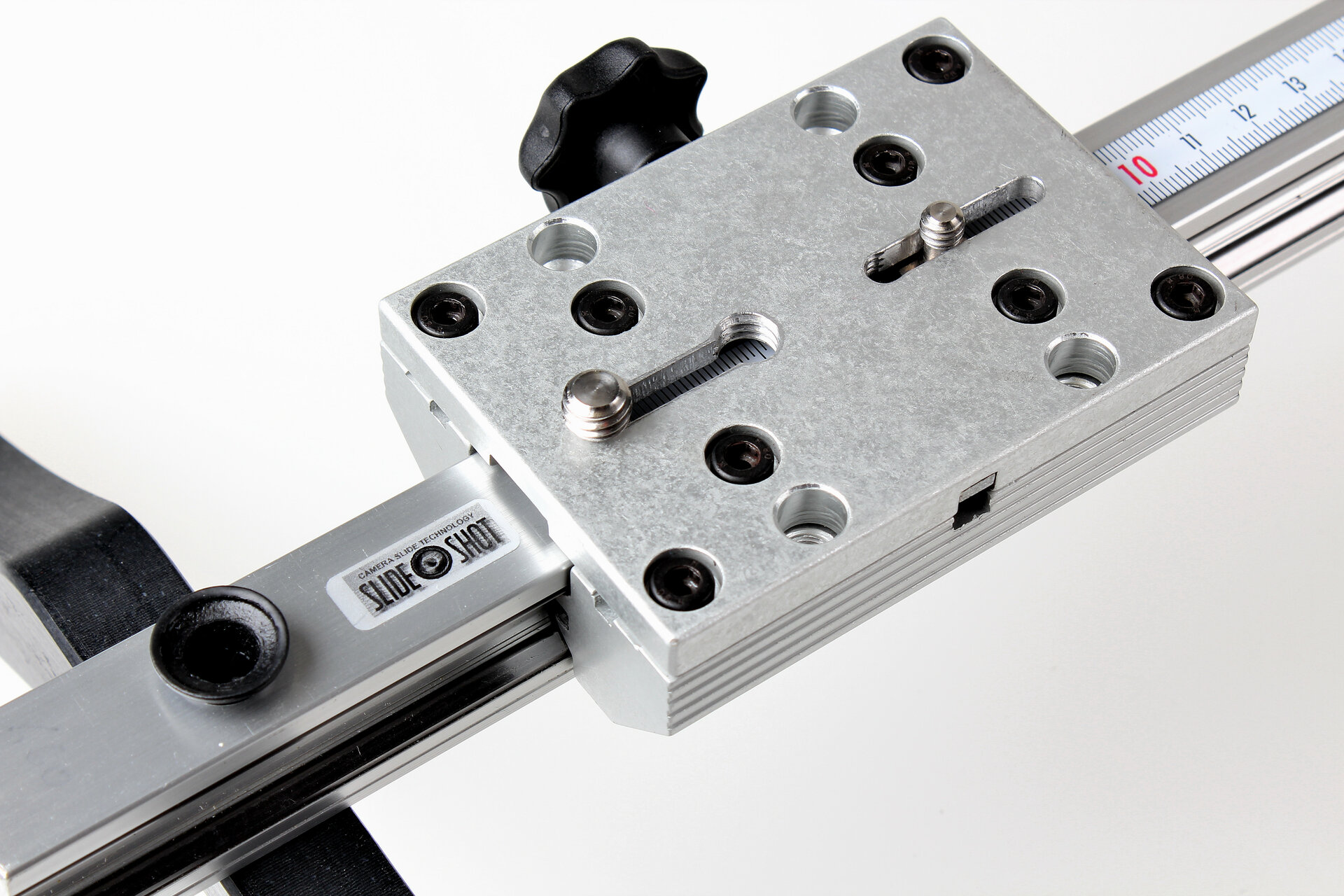

Camera slider with locking mechanism and adjustable connection threads.

Individual linear guides

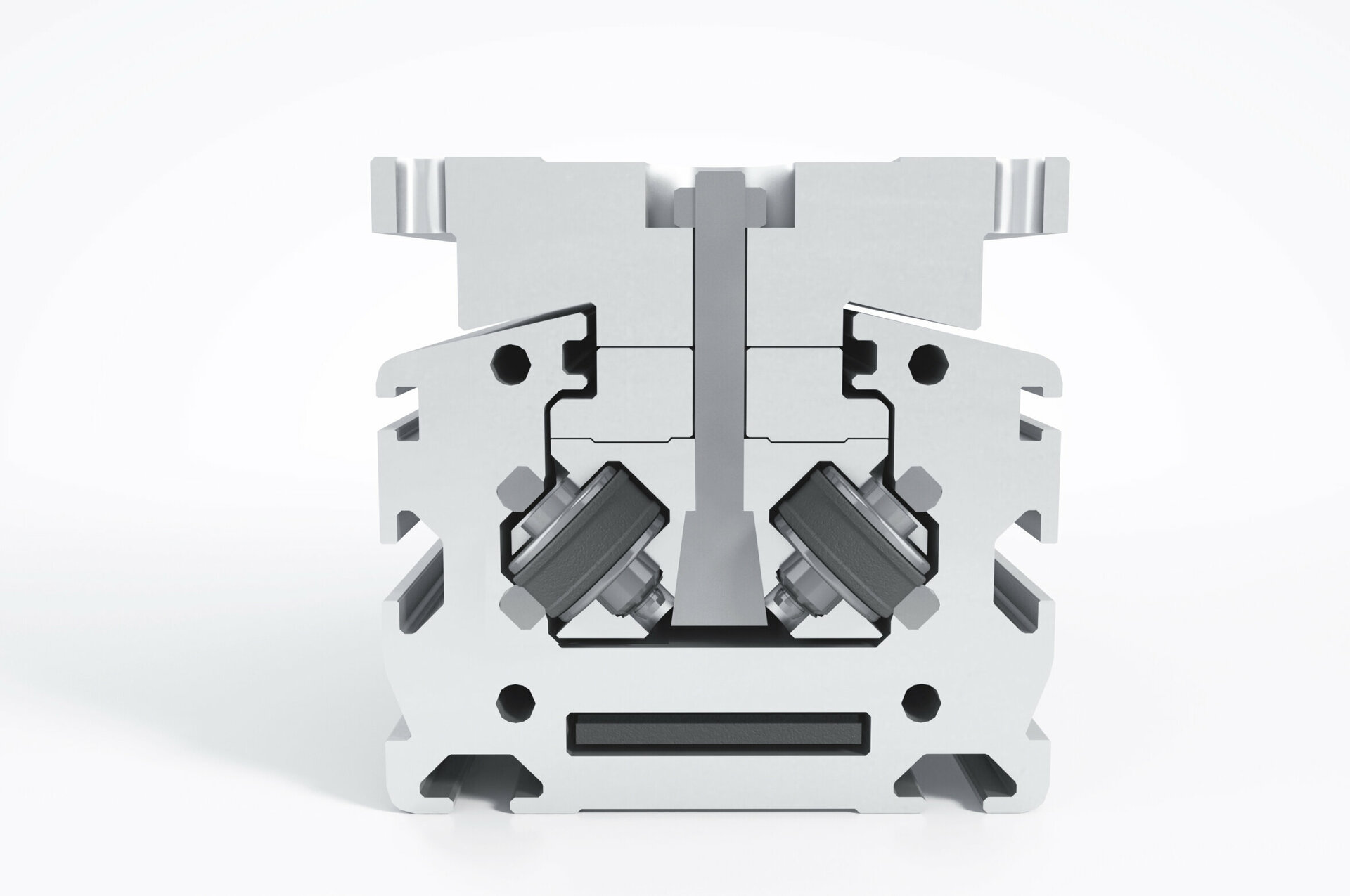

U-shaped special profile made of aluminium with protected internal tracks. The carriage is specially adapted to the profile and has external rollers in a crosswise arrangement.

The entire unit is optimally protected against environmental influences and is driven by a toothed belt.

Assembly consisting of a movable special profile with integrated tracks and two fixed special carriages.

All standard aluminium profiles can be used as guide rails for series production requirements.

Equipped with hardened running wires and combined with customised carriages or roller shoe pairs, individual linear guideways are created that are precisely tailored to your requirements.
