Name: FDA12K
Brand: Franke
SKU: FDAK12#64928A#84494A
Availability: InStock

Data Table

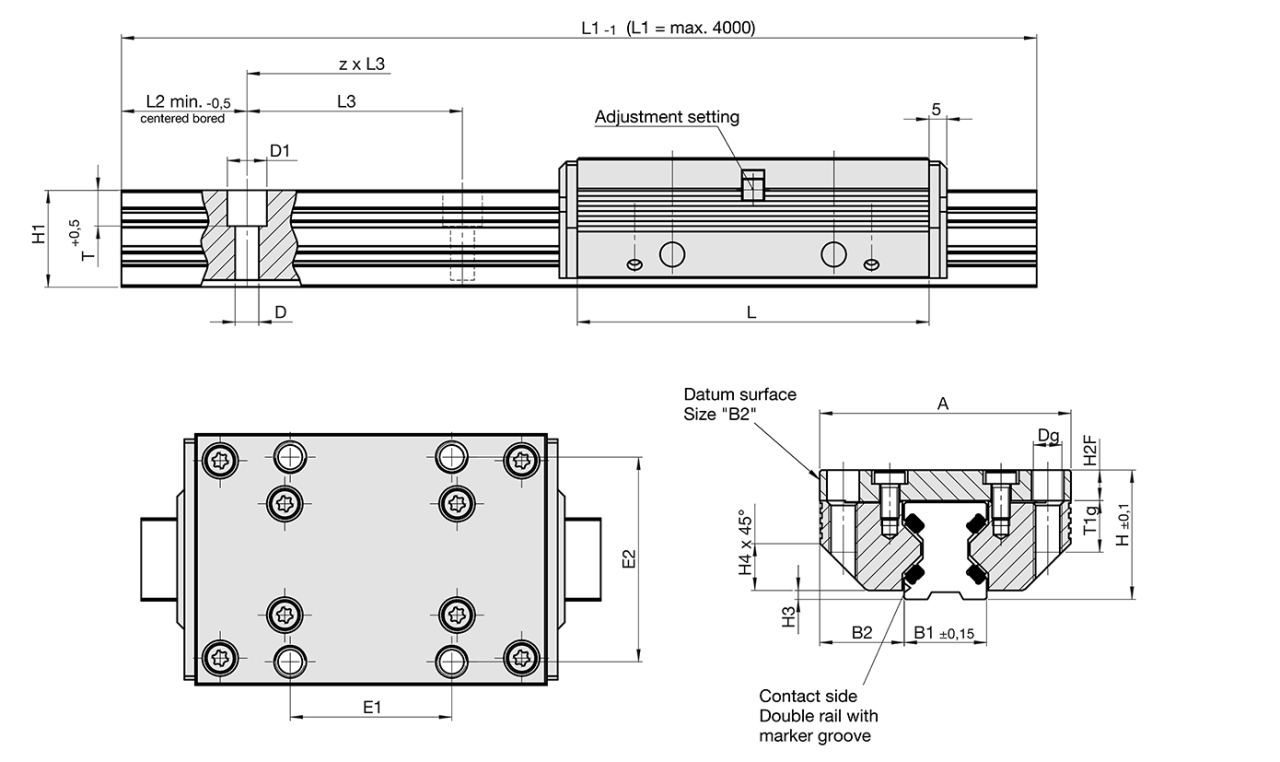

Size	Dimensions mm
	A	L	H	B1	B2	D	D1	Dg	E1
12	37	64	19	12	12.5	3.4	6	M4	25
15	47	78	24	15.5	15.8	4.5	8	M5	30
20	63	92	30	21	21	5.5	10	M6	40
25	70	98	36	23	23.5	6.6	11	M8	45
35	100	135	48	32	34	9	15	M10	62
45	120	165	60	45	37.5	11	18	M12	80

Size	Dimensions mm
	E2	H1	H2F	H3	H4	L2	L3	T	T1g
12	30	14,7	4	1.4	5.5	10	40	5,5	8
15	38	18,7	5	2	8	10	60	6,0	10
20	53	22,6	7	2	11	10	60	8,0	12
25	57	27,0	8.5	2.5	13	10	60	10,0	16
35	82	37,0	10.5	3.5	20	12	80	11,5	20
45	100	46,0	13.5	4	22	16	105	14,5	24

Size	Load Ratings N		Moment capacities carriage Nm				Weight kg
	C	C₀	M_0cx	M_cx	M_0cy/M_0cz	M_cy/M_cz	Weight	Rail/m
12	2800	3000	27,0	25,0	40	43	0,09	0,40
15	4200	3400	37,0	45,0	72	58	0,17	0,80
20	5400	5400	76,0	76,0	111	111	0,35	1,30
25	9000	10100	158,0	142,0	198	222	0,50	1,60
35	12500	18000	423,0	294,0	388	559	1,40	2,60
45	21200	25900	827,0	687,0	806	983	2,50	4,50

84494A 64928A 64928A 84494A 63183A 84396A 69078A 84441A 62570A 84363A 62601A 84364A 62636A 84365A
