Name: FDH25R
Brand: Franke
SKU: FDHR25#62717A#84367S
Availability: InStock

back to linear systems product overview

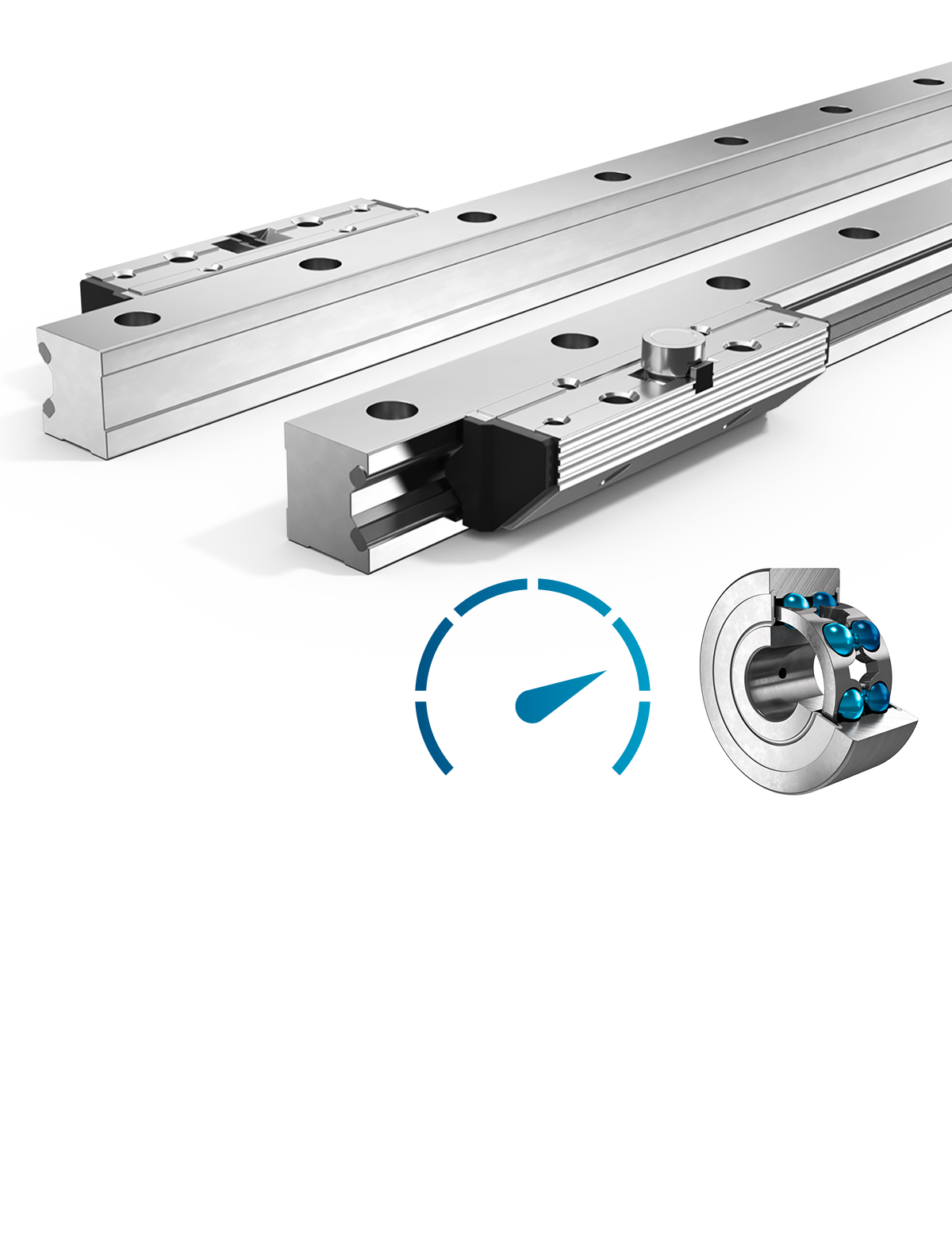

Highly dynamic, Angular ball bearing

Highly dynamic, type FDH

84367S 62717A

Size

25

35

45

Dimension and Data Tables

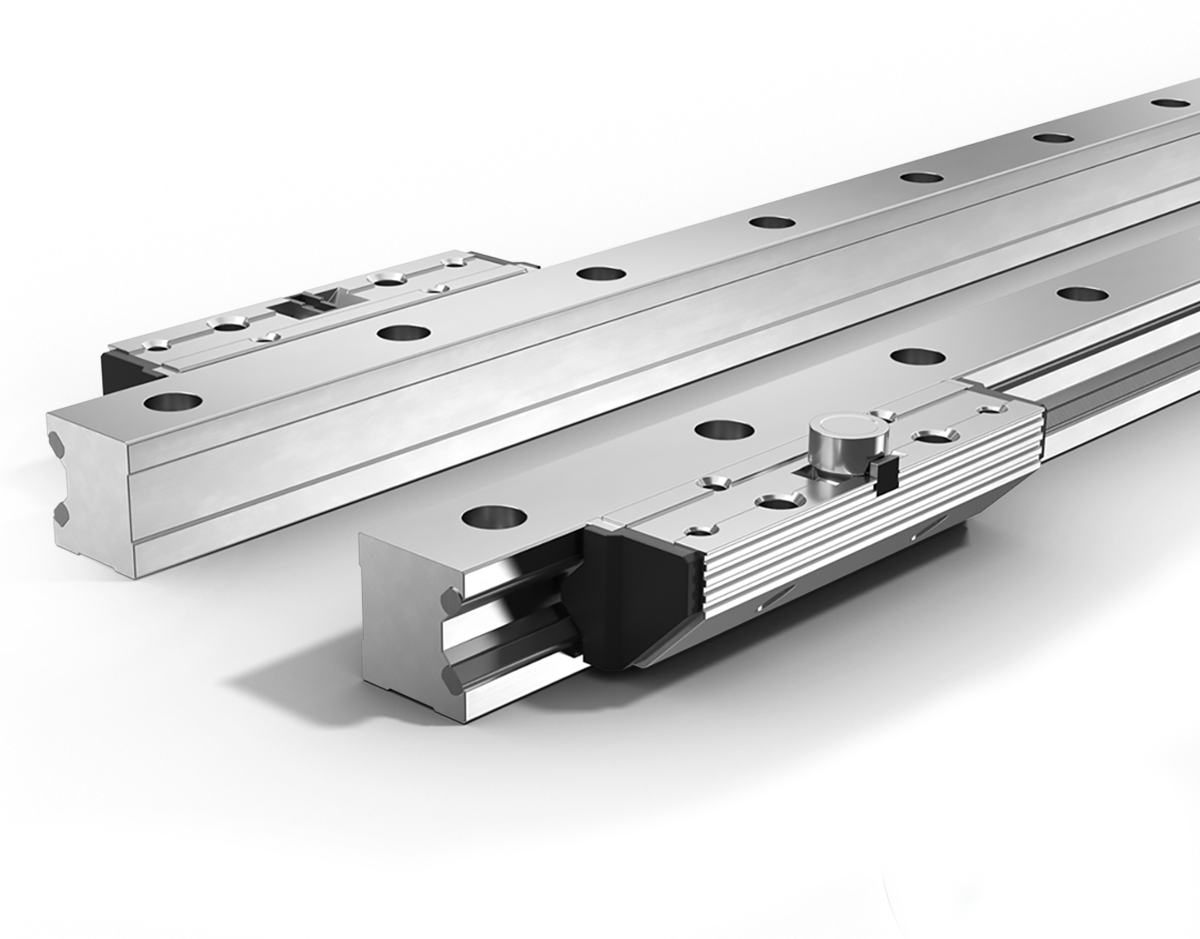

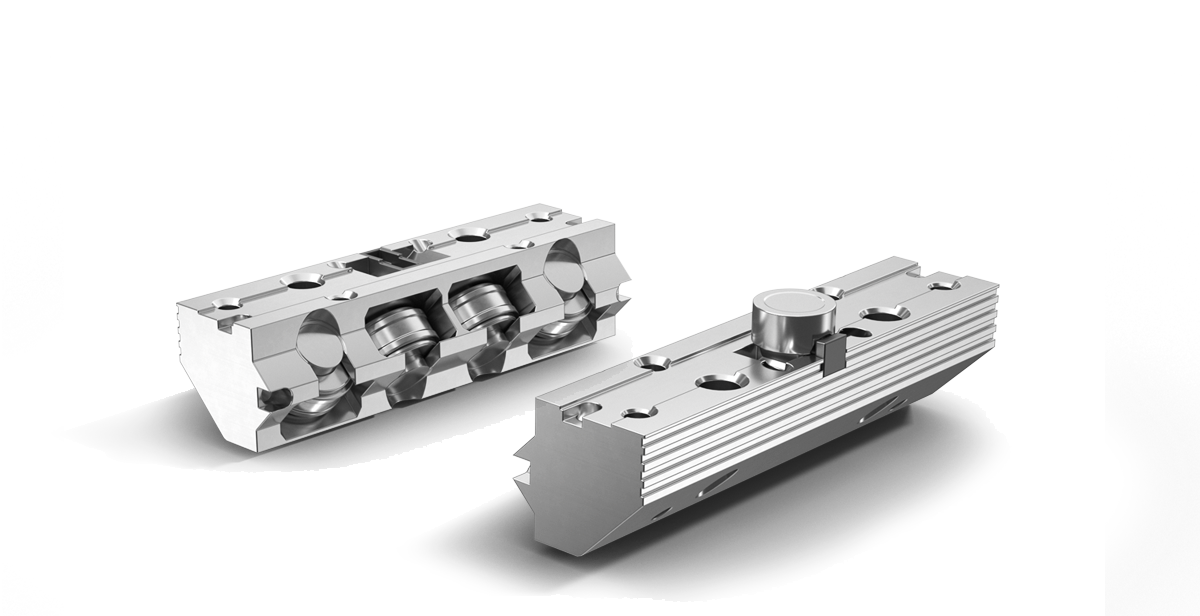

Pair of roller shoes

Standard

without roller shoe pair

Number of roller shoe pairs per rail

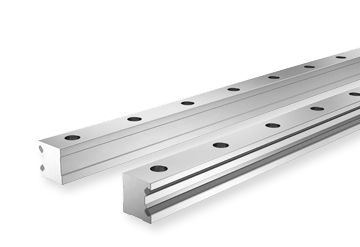

Pair of profile rails

without profile rail pair

with profile rail pair

Rail Length

200 - 4.000 mm orderable other lengths on request

Unit price:		-,- EUR
Price Pair of profile rails		-,- EUR/m
Price Pair of roller shoes		-,- EUR/m
Total price:		-,- EUR

Quantity

Stroke length One piece from 200 mm to 4000 mm, connectable on request

Material Cassette plate, roller shoes,
Rail body: aluminum, anodized
Raceways: spring steel
Rollers: steel

Operating temperature −20 °C to +80 °C

Maximum speed 10 m/s

Mounting position Any

Lubricant Lifetime-lubricated, maintenance-free

Roller:	Angular contact ball bearings
Raceway:	Spring steel, standard

Resilience
Dynamics
Corrosion resistant
Non magnetic
Lubricant free
Price

Data Table

Size	Dimensions mm
	L	B5	H5	B3	B4	D3	D	D1	D2	D4	D5	E1	E3	E4	E5
12	-	-	-	12	-	-	3.4	6	-	-	-	-	-	-	-
15	-	-	-	15.25	-	-	4.5	8	-	-	-	-	-	-	-
20	-	-	-	20	-	-	5.5	10	-	-	-	-	-	-	-
25	98	48.4	27.5	25	22.9	M5	6.6	11	M8	14	6	45	6.4	48	84
35	135	68.9	37.5	35	32.9	M6	9	15	M10	14	6	62	8.9	67	117
45	165	82.4	46.5	45	36.4	M8	11	18	M12	14	6	80	9.9	83	146

Size	Dimensions mm
	E6	E7	E8	E9	H1	H3	H4	H6	L3	T	T3	a	b
12	-	-	5.5	-	14.7	-	-	-	40	5.5	-	-	-
15	-	-	7	-	18.7	-	-	-	60	6	-	-	-
20	-	-	9.5	-	22.6	-	-	-	60	8	-	-	-
25	19.4	7.4	12	8.9	27	2.5	13	7	60	10	5	10.5	17.5
35	28.4	8.9	17	8.9	37	3.5	20	7	80	11.5	8.5	12.5	26
45	30.9	9.9	22	8.9	46	4	22	7	105	14.5	9.5	15.5	31

Size	Load Ratings N		Moment capacities pair of roller shoes Nm				Weight kg
	C	C₀	M_0cx	M_cx	M_0cy/M_0cz	M_cy/M_cz	PRS	Rail/m
12	-	-	-	-	-	-		0.4
15	-	-	-	-	-	-		0.8
20	-	-	-	-	-	-		1.2
25	7500	3700	1,8*(B+58,4)	3,7*(B+58,4)	81	165	0.35	1.8
35	13400	8100	4,0*(B+85,0)	6,7*(B+85,0)	250	416	1	3.1
45	24300	14400	7,2*(B+109,0)	12,2*(B+109,0)	548	924	1.8	5
