Name: FDI12R
Brand: Franke
SKU: FDIR12#612393#84495NV
Availability: InStock

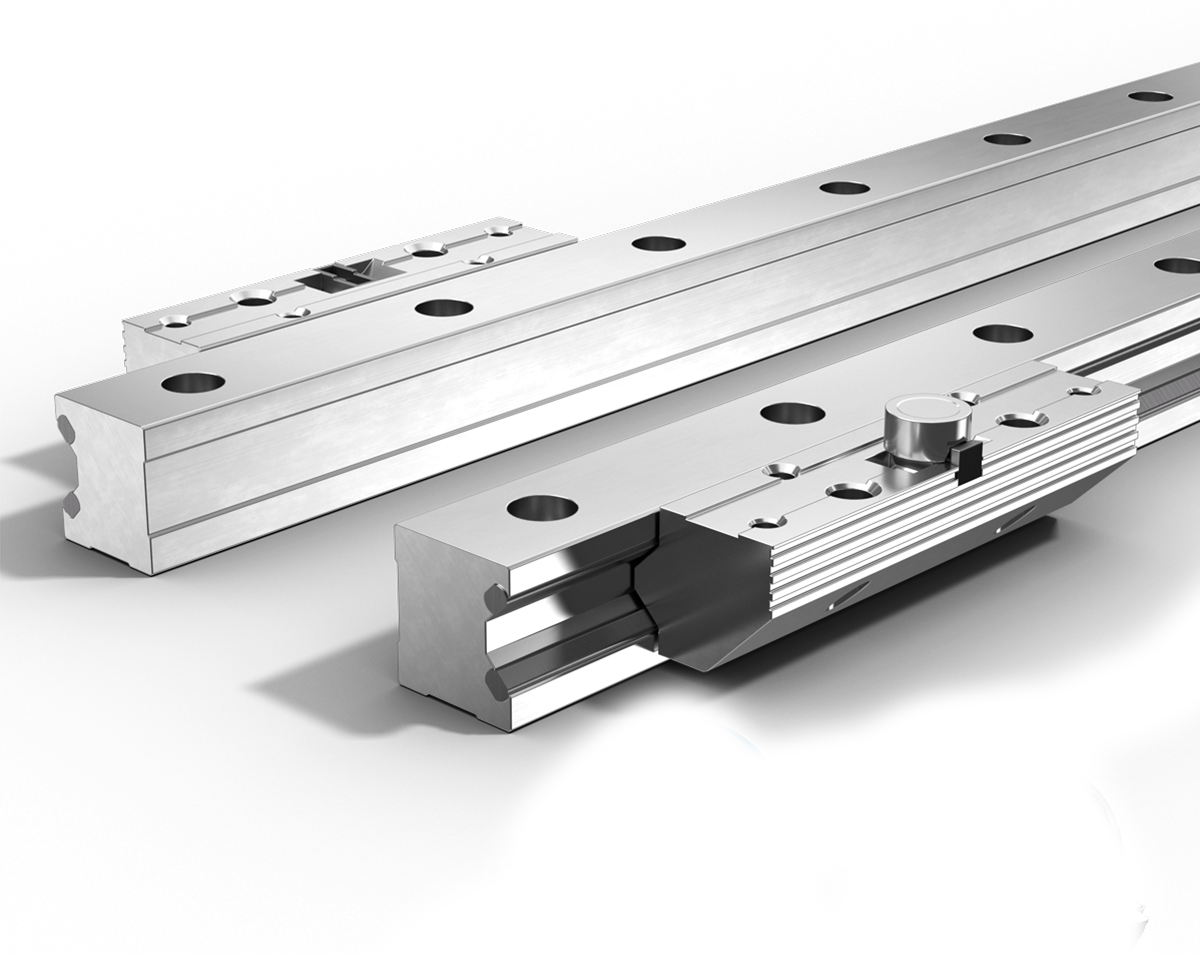

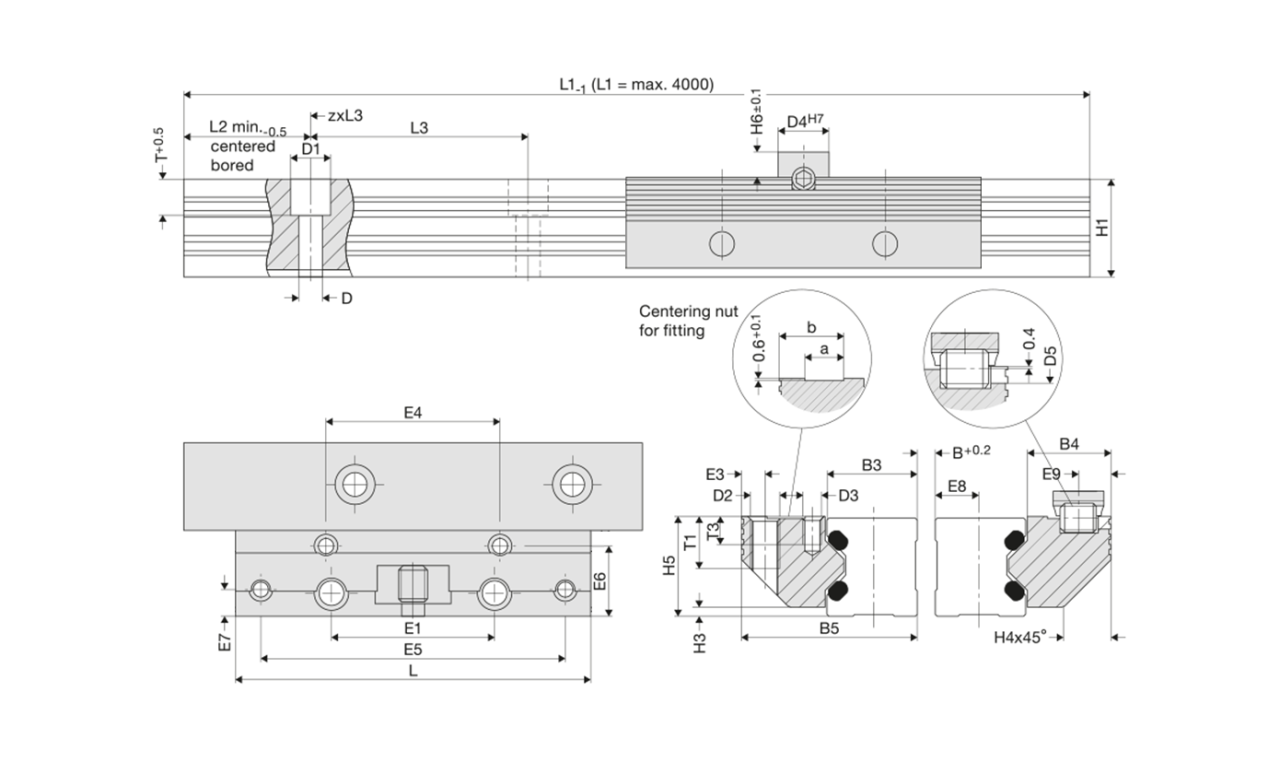

Data Table

Size	Dimensions mm
	L	B5	H5	B3	B4	D3	D	D1	D2	D4	D5	E1	E3	E4	E5
12	64	24.4	15	12	11.9	M3	3.4	6	M4	8	3	25	3.4	29	57
15	78	30.9	19	15.25	15.2	M4	4.5	8	M5	10	4	30	4.4	34	68
20	92	40.9	23	20	20.4	M5	5.5	10	M6	10	4	40	4.9	42	80
25	98	48.4	27.5	25	22.9	M5	6.6	11	M8	14	6	45	6.4	48	84
35	135	68.9	37.5	35	32.9	M6	9	15	M10	14	6	62	8.9	67	117
45	165	82.4	46.5	45	36.4	M8	11	18	M12	14	6	80	9.9	83	146

Size	Dimensions mm
	E6	E7	E8	E9	H1	H3	H4	H6	L3	T	T3	a	b
12	9.7	3.4	5.5	4.9	14.7	1.4	5.5	4	40	5.5	6	4.5	9.5
15	12.4	4.9	7	5.9	18.7	2	8	5	60	6	7.5	5	12.5
20	16.9	5.9	9.5	5.9	22.6	2	11	5	60	8	8	7.5	16
25	19.4	7.4	12	8.9	27	2.5	13	7	60	10	7	10.5	17.5
35	28.4	8.9	17	8.9	37	3.5	20	7	80	11.5	8.5	12.5	26
45	30.9	9.9	22	8.9	46	4	22	7	105	14.5	9.5	15.5	31

Size	Load Ratings N		Moment capacities pair of roller shoes Nm				Weight kg
	C	C₀	M_0cx	M_cx	M_0cy/M_0cz	M_cy/M_cz	PRS	Rail/m
12	550	600	0,3*(B+30,3)	0,3*(B+30,3)	8.5	8	0.07	0.4
15	1350	1500	0,7*(B+36,5)	0,7*(B+36,5)	26	23	0.12	0.8
20	2150	2500	1,2*(B+47,0)	1,1*(B+47,0)	51.5	44	0.23	1.2
25	2900	4150	2,1*(B+58,4)	1,4*(B+58,4)	92	64	0.35	1.8
35	5000	7250	3,6*(B+85,0)	2,5*(B+85,0)	226	156	1	3.1
45	8500	10200	5,1*(B+109,0)	4,2*(B+109,0)	387	322	1.8	5

84495NV 612393 612393 84495NV 612394 84395NV 612395 84442NV 612396 84367NV 81609NV 84368NV 612397 84369NV
