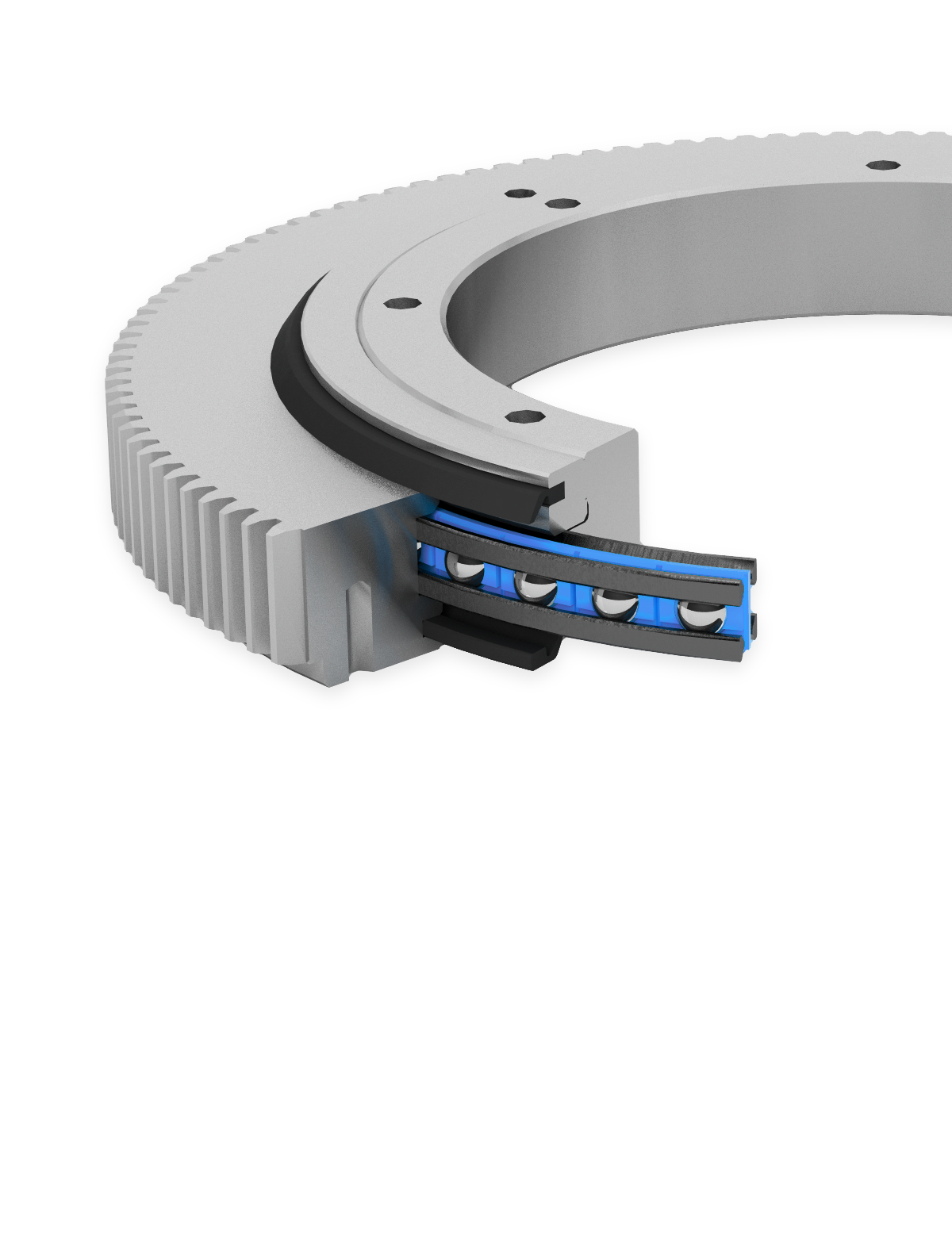

Ball bearing type LVD

97186A

Bearing diameter KK

Special sizes on request

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Material

Outer ring: 42CrMo4V
Inner ring: C45N
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Cage: polyamide or thermoplastic polyurethane
Sealing: NBR

Gearing

DIN 3967, quality 8e25, straight toothed, module see table below

Operating temperature

-20 °C to +80 °C, short-term up to +100 °C

Peripheral speed

Max. 5 m/s, without seal max. 10 m/s

Lubricant

Shell Gadus S3 V220 C2

Relubrication

Via grease nipples to DIN 3405

Smooth running
Resilience
Speed
Stiffness
Weight
Price

Data Table

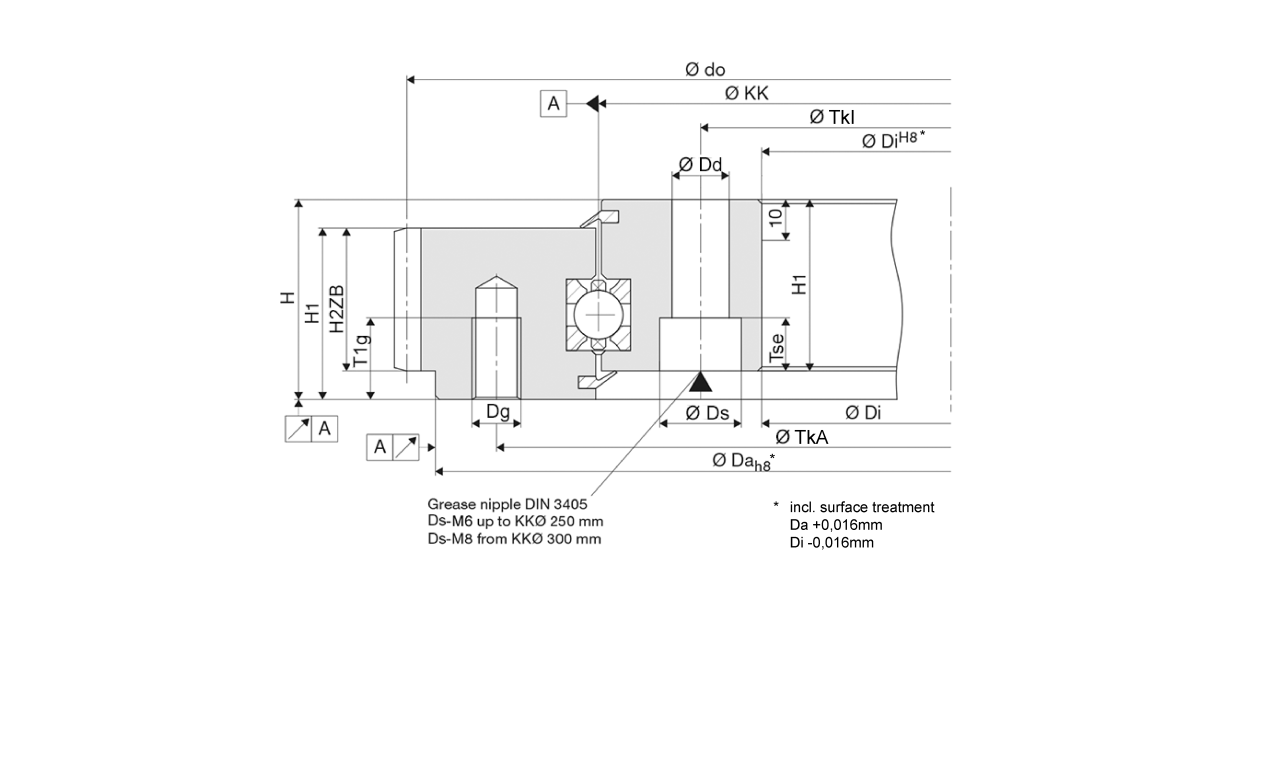

		Dimensions mm													Fastening per Ring
Name	KKØ mm	Ds	Dd	H	H1	H2ZB	Dg	Tse	T1g	Da_h8	Di^H8	TkA	TkI	do
LVD-0100	100	11	6.6	34	27	22	M6	6.8	10	150	50	135	65	160	6
LVD-0150	150	11	6.6	34	27	22	M6	6.8	10	200	100	185	115	210	6
LVD-0200	200	11	6.6	34	27	22	M6	6.8	10	250	150	235	165	260	8
LVD-0250	250	11	6.6	34	27	22	M6	6.8	10	300	200	285	215	320	10
LVD-0300	300	15	9	38	31	22	M8	9	15	360	240	340	260	372	12
LVD-0350	350	15	9	38	31	26	M8	9	15	410	290	390	310	423	14
LVD-0400	400	18	11	44	37	32	M10	11	15	470	330	445	355	483	14
LVD-0450	450	18	11	44	37	32	M10	11	15	520	380	495	405	534	14
LVD-0500	500	20	14	49	42	35	M12	13	20	580	420	550	450	594	14
LVD-0600	600	20	14	49	42	35	M12	13	20	680	520	650	550	693	16
LVD-0700	700	20	14	53	45	38	M12	13	20	790	610	750	650	808	22
LVD-0800	800	20	14	53	45	38	M12	13	20	890	710	850	750	920	24
LVD-0900	900	20	14	53	45	38	M12	13	20	990	810	950	850	1020	24
LVD-1000	1000	20	14	53	45	38	M12	13	20	1090	910	1050	950	1120	26
LVD-1200	1200	26	18	60	52	44	M16	17.5	25	1300	1100	1265	1135	1320	30
LVD-1400	1400	26	18	60	52	44	M16	17.5	25	1500	1300	1465	1335	1520	36
LVD-1600	1600	26	18	90	82	69	M16	17.5	25	1730	1470	1685	1515	1752	42
LVD-1800	1800	26	18	90	82	69	M16	17.5	25	1930	1670	1885	1715	1956	46

		Load Ratings kN				Static Moment kNm	Gearing
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Module m	Number of teeth	Weight kg
LVD-0100	100	54	25	18	15	1,3	2	80	3,50
LVD-0150	150	82	39	21	18	2,9	2	105	5,00
LVD-0200	200	110	52	23	20	5,2	2	130	6,70
LVD-0250	250	138	65	25	22	8,1	2	160	8,40
LVD-0300	300	168	79	27	24	11,9	3	124	14,10
LVD-0350	350	196	92	29	25	16,2	3	141	16,50
LVD-0400	400	419	197	51	44	39,5	3	161	26,00
LVD-0450	450	477	225	54	47	50,5	3	178	29,20
LVD-0500	500	530	250	56	49	62,4	3	198	42,40
LVD-0600	600	636	299	60	52	89,8	3	231	50,80
LVD-0700	700	742	349	64	55	122,2	4	202	73,00
LVD-0800	800	848	399	67	58	159,6	5	184	83,20
LVD-0900	900	954	449	70	60	202,0	5	204	93,60
LVD-1000	1000	1065	501	73	63	250,5	5	224	104,00
LVD-1200	1200	1677	789	94	81	473,4	5	264	158,50
LVD-1400	1400	1956	920	99	86	644,3	5	304	184,90
LVD-1600	1600	1984	933	140	121	747,1	6	292	430,60
LVD-1800	1800	2234	1050	146	126	946,0	6	326	484,20

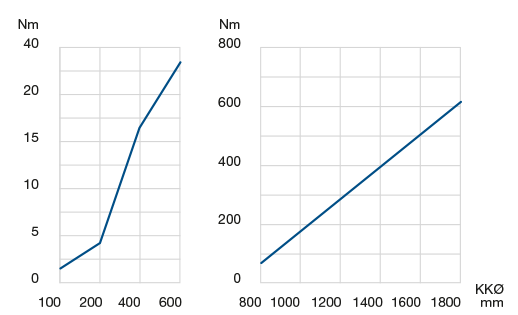

Rotational resistance

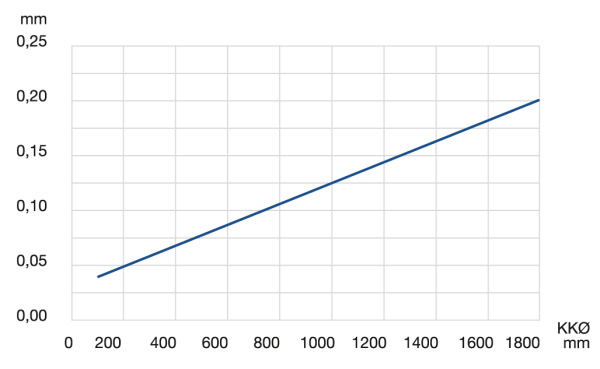

Radial and axial runout accuracy
