Angular contact roller bearing type LVG

604617

Unit price:		-,- EUR
Price		-,- EUR

Quantity

Material Inner / Outer ring: aluminium, anodized
Ball race rings: hardened and tempered chrome-silicon steel
Rolling element: hardened rolling bearing steel
Cage: polyamide or thermoplastic polyurethane
Sealing: NBR

Operating temperature -20 °C to +80 °C, short-term up to +100 °C

Peripheral speed Max. 4 m/s

Lubricant Isoflex Topas NCA52

Relubrication Via grease nipples to DIN 3405

Smooth running
Resilience
Speed
Stiffness
Weight
Price

Data Table

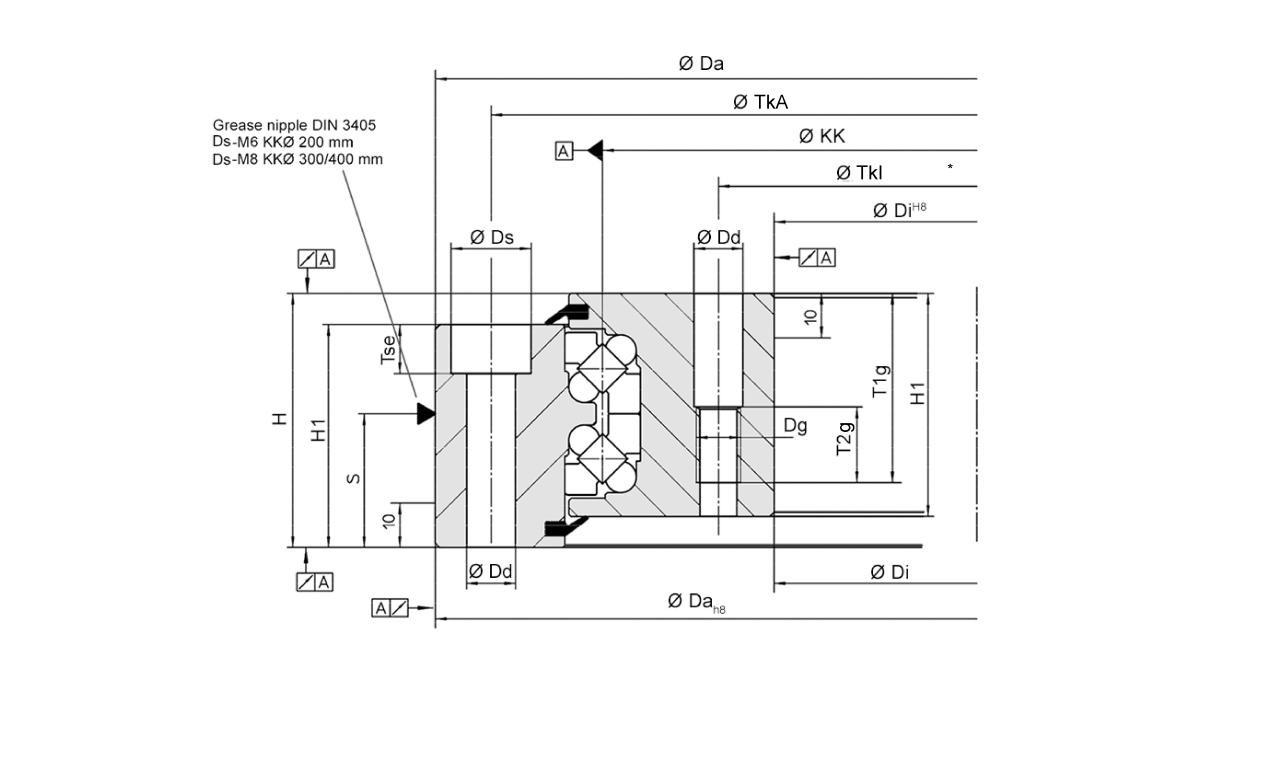

		Dimensions mm												Fastening per Ring
Name	KKØ mm	Ds	Dd	H	H1	Dg	Tse	T1g	T2g	Da_h8	Di^H8	TkA	TkI
LVG-0200	200	15	9	47	-	M8	9	35	15	262	140	243	159	8
LVG-0300	300	18	11	57	-	M10	11	43	17	375	223	350	248	14
LVG-0400	400	18	11	57	-	M10	11	43	17	475	323	450	348	14

		Load Ratings kn				Static Moment kNm
Name	KKØ mm	C_0a	C_0r	C_a	C_r	C_0m	Weight kg
LVG-0200	200	309	124	39	36	12,4	4,10
LVG-0300	300	617	247	78	72	37,1	9,30
LVG-0400	400	827	331	90	83	66,2	12,40

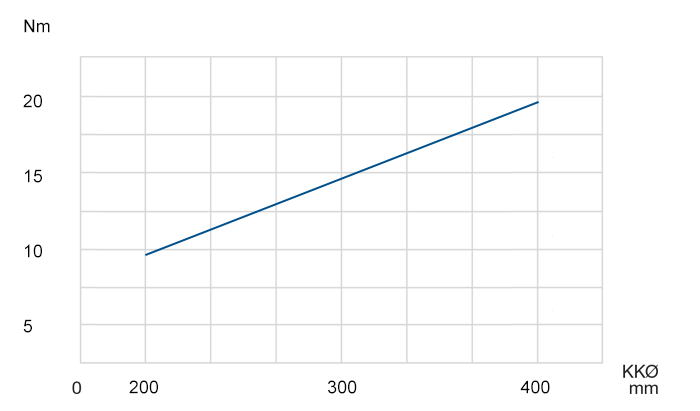

Rotational resistance

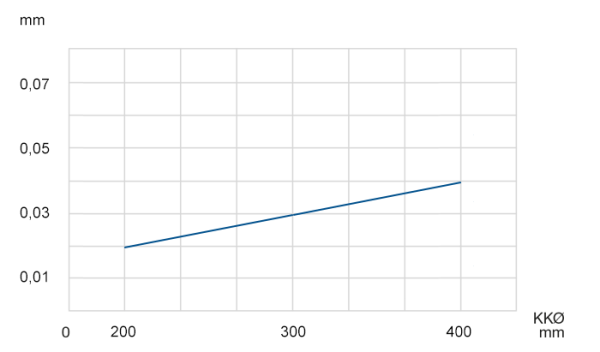

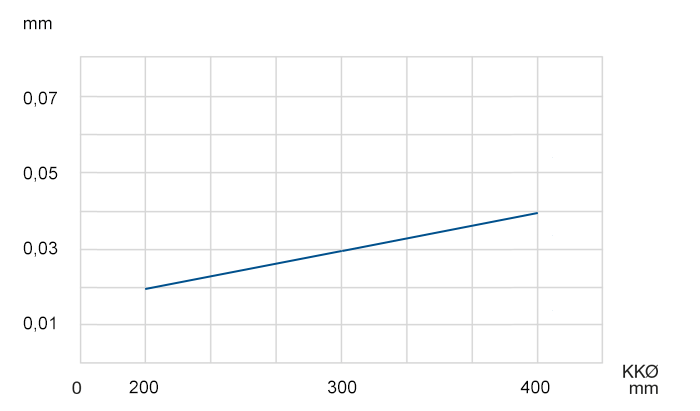

Radial and axial runout accuracy
