Anwendungsbeispiel Linearführungen Print control scanner

Linear guides in a scanner for web inspection. The inspection head moves along the print web and checks the quality of the ink application and the carrier material. The guide length is four meters and the installation space is extremely small.

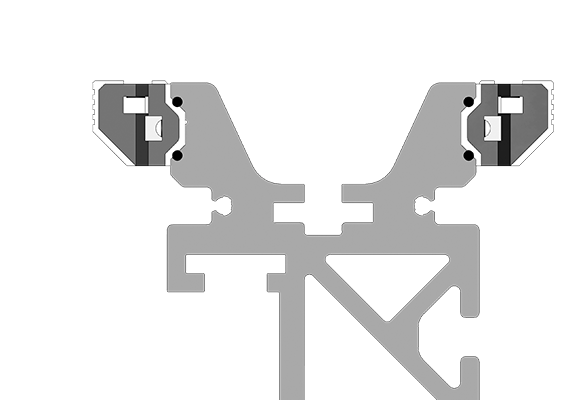

Linear systems in special design. The raceways of the rail are inserted directly into the aluminium profile of the customer's construction.

By integrating the running bars directly into the customer profile, costs and space of the guide rail are saved. The roller shoes run directly on the customer's aluminium profile.
