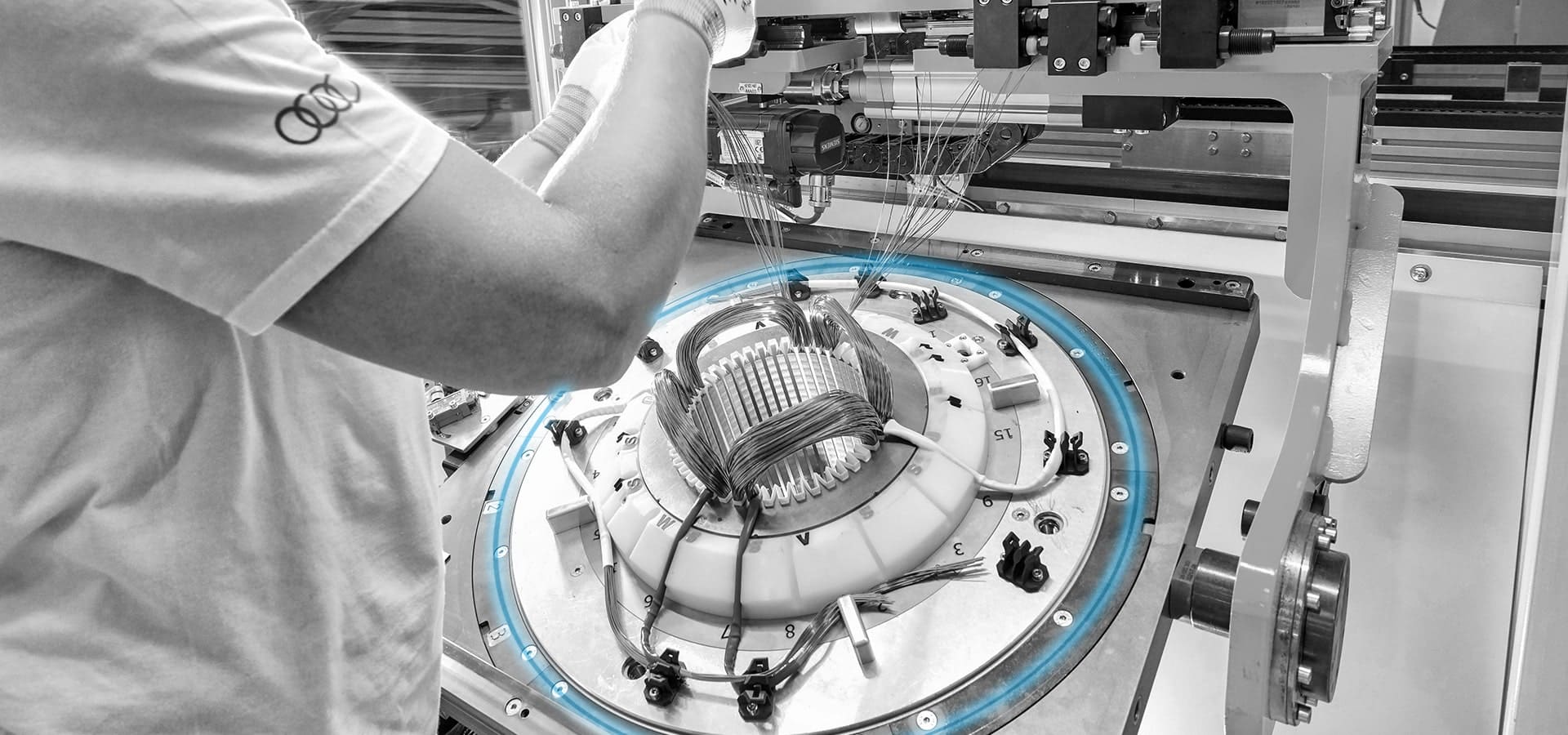

Anwendungsbeispiel Wälzlager Bearing arrangement of stator winding machines

To ensure homogeneous windings of the stators, the winding head must be precisely supported. A uniform, homogeneous rotational resistance and lightweight construction to reduce mass inertia are further requirements. The high running performance of the bearing is the guarantee for high economic efficiency.

Individual designed wire race bearings type LER in diameters from 300 to 700 mm.

Franke wire race bearings can be integrated directly into the existing system. Their small installation space and the homogeneous rotational resistance that can be installed ensure a precise, uniform bearing arrangement of the winding head with a long service life.
