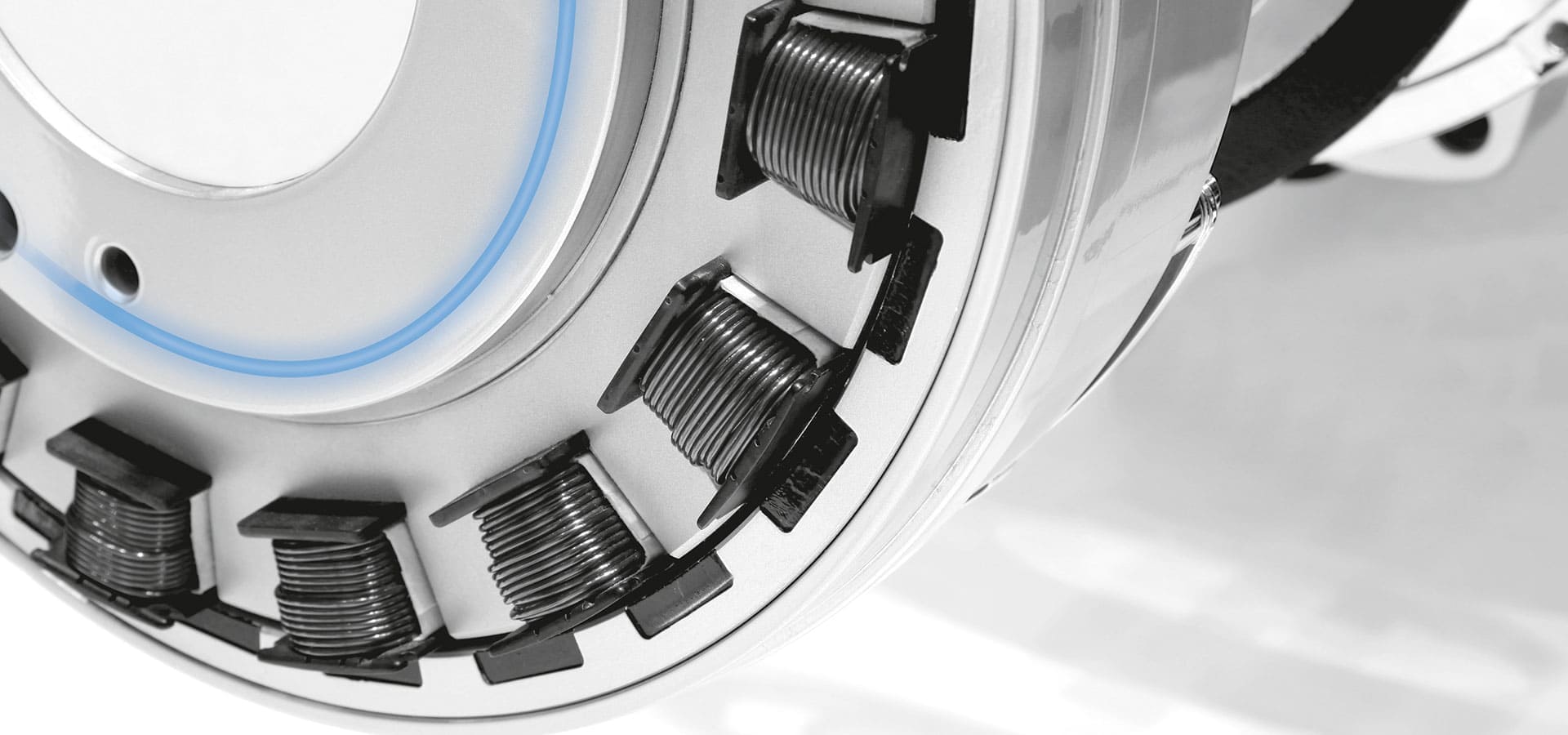

Anwendungsbeispiel Wälzlager Wheel hub with Torque-Motor
Requirements
A concept vehicle is to be driven with one direct drive per wheel. For this purpose, a space-saving bearing with sufficient load capacity is sought The maximum speed is 1,000 rpm. The balls must be non-magnetic due to the proximity of the direct drive.
Solution
Four customized LES0380 – 5/9.525, including ceramic balls.
Customer-specific bearing arrangement for direct integration into the customer's design. Support of forces from all directions including tilting moments. Installation space designed in cooperation. Joint assembly of the prototype at Franke.
Whitepaper slewing ring with torque drive
Find out more about slewing rings with integrated torque motor and why it is superior to other drive types in almost every respect.
In future, dispense with components such as gearboxes and drive pinions.
