Anwendungsbeispiel Wälzlager Oncological radiation unit

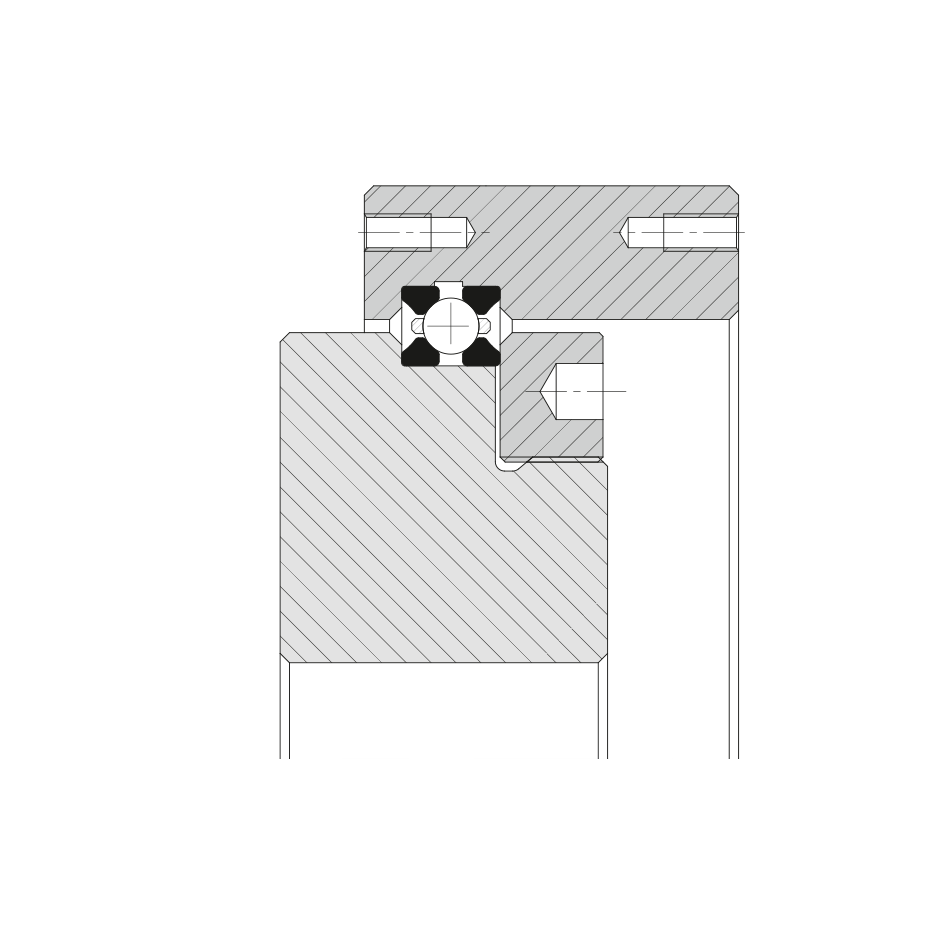

Bearing assembly for oncological radiation equipment used primarily for special clinics in the USA. The design must be in accordance with the clinical specifications.

Hard anodized aluminium housing with toothed outer ring for the drive and specially adjusted resistance to rotation to enable smooth running.

Thanks to very thin walls and lightweight construction, the mass was 60% below the customer's specification. High rigidity despite low breakaway torque completed the requirements.
