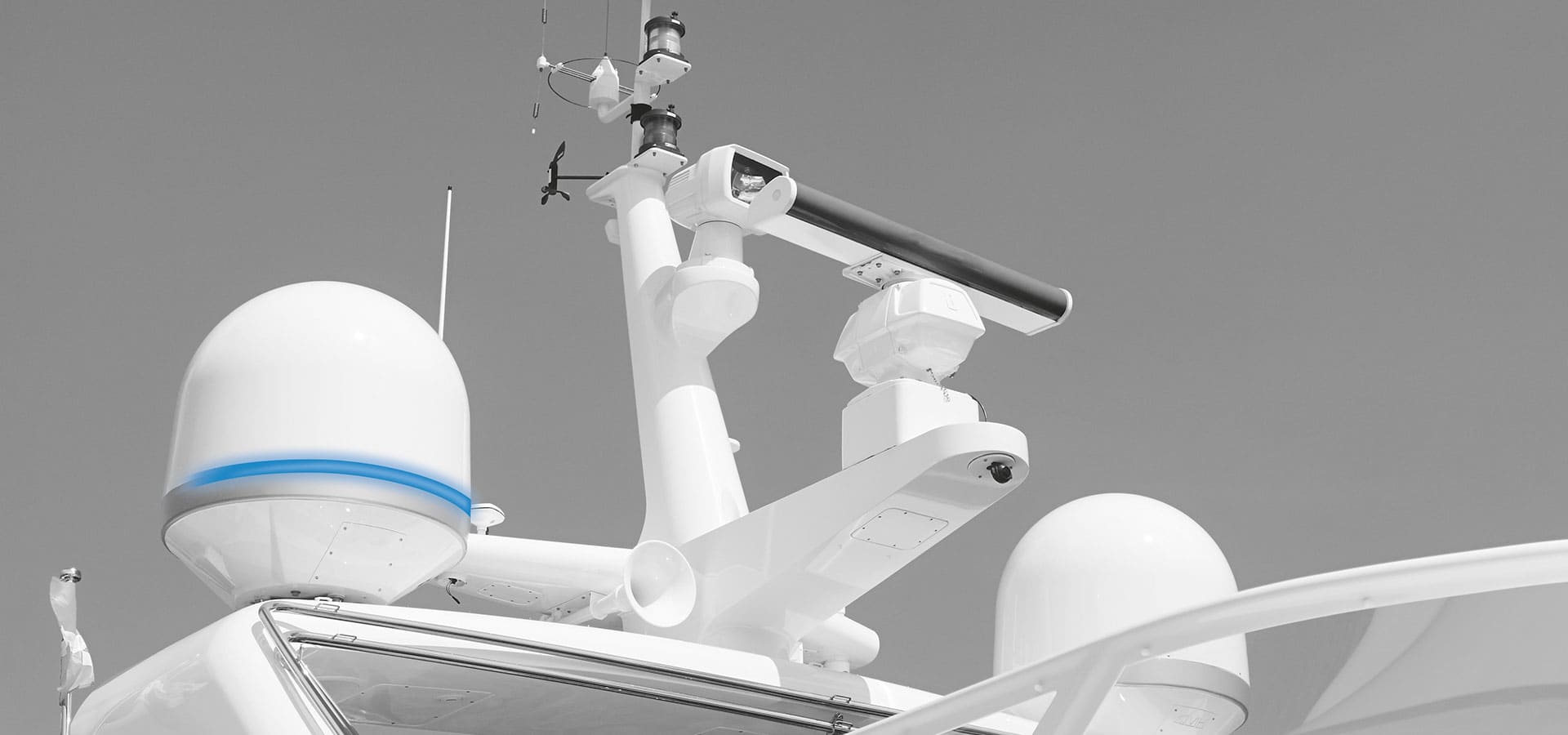

Anwendungsbeispiel Wälzlager Satellite Antenna on Vessels

The bearing must have a high rigidity over the complete service life (shock loads due to shaft movement). Corrosion resistance and constant rotational resistance over a temperature range from -25 °C to +60 °C must be ensured.

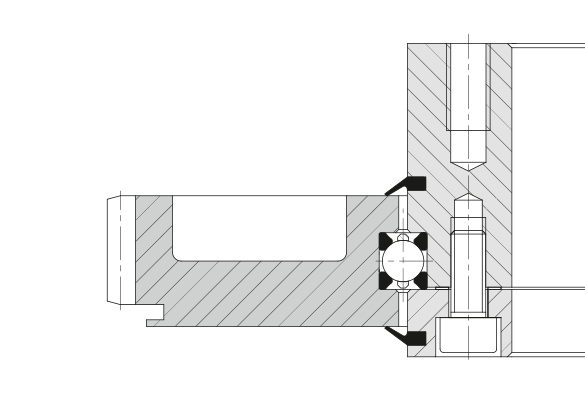

Individually produced bearing assembly LDA166 in steel version with threaded ring including coating and LER bearing element

The steel solution has a constant rotational resistance over the entire temperature range. The high stiffness over the entire service life is ensured by an additional running-in process and readjustment.
