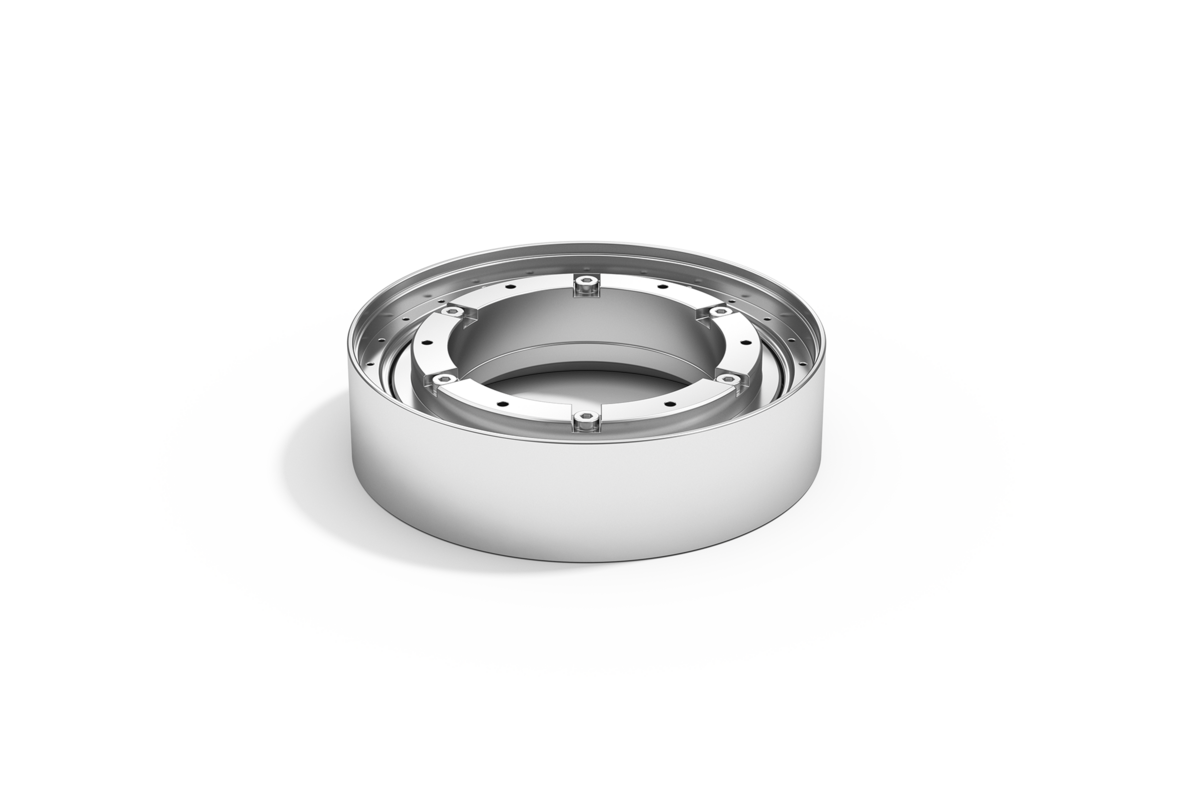

Compact azimuth and elovation bearings for precise positioning

Sensor platforms

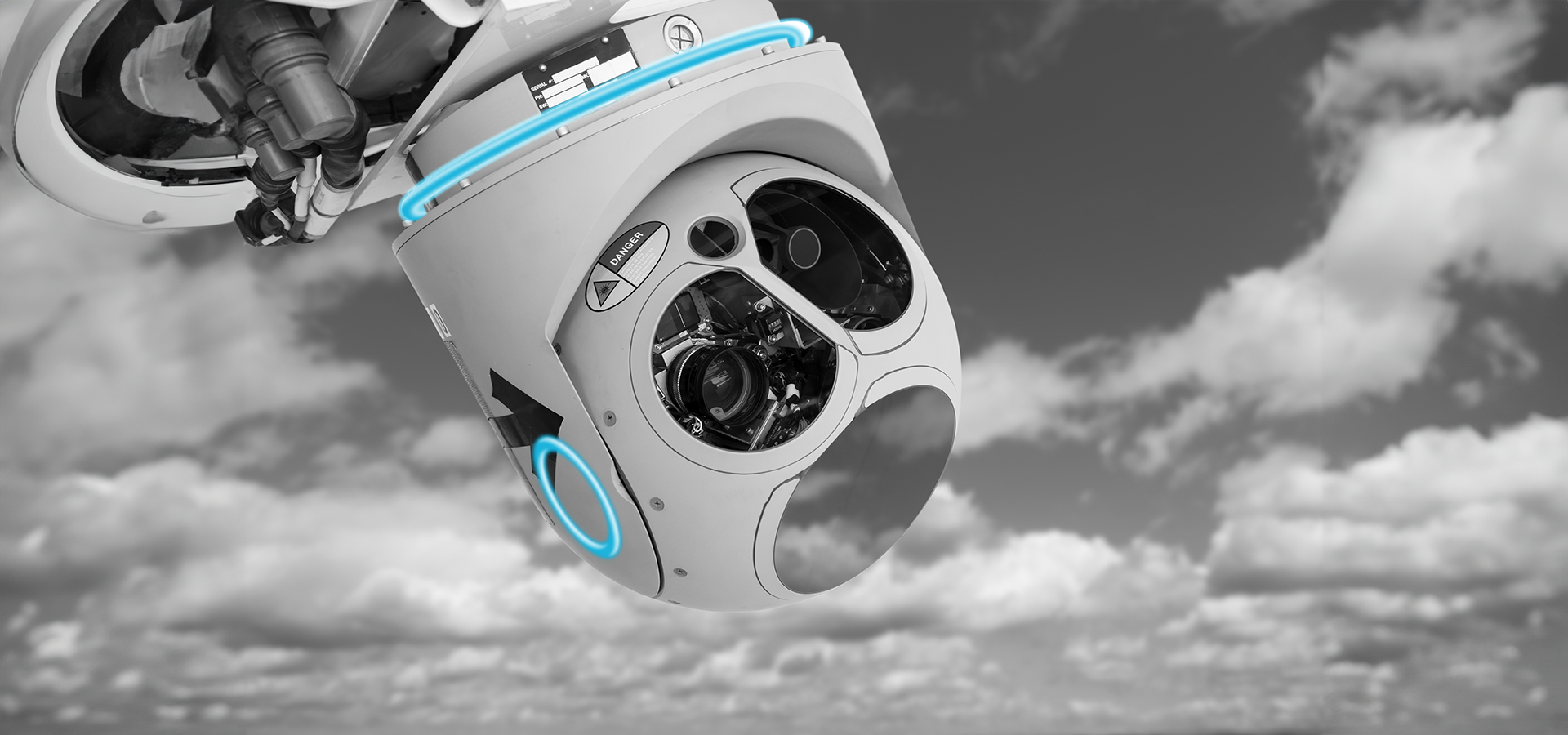

High-precision and rigid roller bearings and slewing rings with low and uniform rotational resistance are used for optical systems - on land, at sea and in the air.

They are specially developed for the high demands of modern optronic systems and gimbals in the defence and security sector.

Precision for small installation spaces

Compact and smooth-running lightweight bearings with high rigidity properties for optoelectronic devices, gimbals or sensor platforms. Our wire race bearings are your solution for the typical challenges in reconnaissance, target acquisition and surveillance.

more about lightweight design for roller bearings

Your contact

Competent advice is the basis for a trusting and long-term partnership.

I would be happy to advise you personally

Arne Jankowski
Technical advisor

Tel: +49 7361 920 185

Send an e-mail

Ultra-light roller bearings with topology optimisation

Find out how you can save weight by optimising the topology of a 3D-printed slewing ring without neglecting the function of the rolling bearing.

The example shown here is a roller bearing for the aerospace industry.

Download Case Study

Franke benefits

Outstanding properties of Franke wire race bearings for the mounting of optical devices and measuring systems:

haute précision

Vibration resistant

customized

light

easy running

Possibilities instead of requirements

[Translate to Englisch:] Franke Wälzlager bieten viele Möglichkeiten der umschließenden Konstruktion.

[Translate to Englisch:] Wälzlager von Franke finden in den unterschiedlichsten Konstruktionen ihren Platz.

[Translate to Englisch:] Die umschließende Konstruktion ist frei wählbar, da das Franke Wälzlager die Hauptlast aufnimmt.

[Translate to Englisch:] Wälzlager von Franke sind in kompakten Konstruktionen einsetzbar.

[Translate to Englisch:] Die Form der Konstruktion ist mit Wälzlagern von Franke nahezu frei wählbar.

[Translate to Englisch:] Beim Einsatz von Franke Wälzlagern lässt sich auch das Material der umschließenden Konstruktion frei wählen.

We have the right solution for almost every requirement.

Be it corrosion resistance, vibration and shock resistance or even a slewing ring in lightweight design - the customisation options are almost endless.

Discover your options
