Rotating ring mounts & weapon stations

Weapon carrier

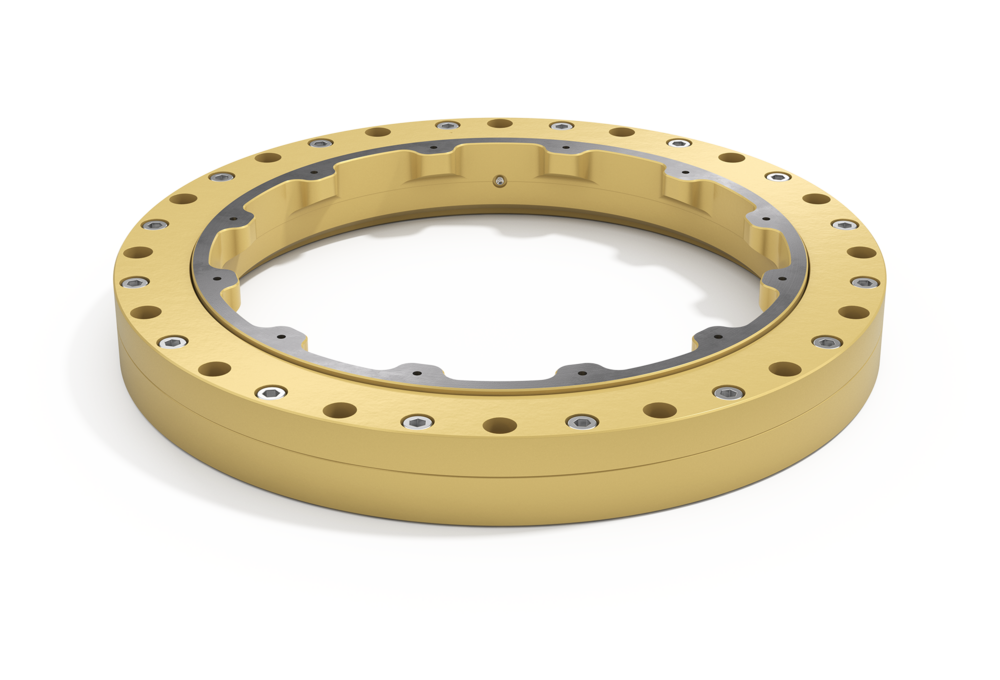

The externally or internally toothed slewing rings made of high-strength aluminium or steel are suitable for use in rotating ring mounts and as azimuth and elevation bearings in modern weapon stations. Developed entirely to customer specifications or according to the specific requirements of the application.

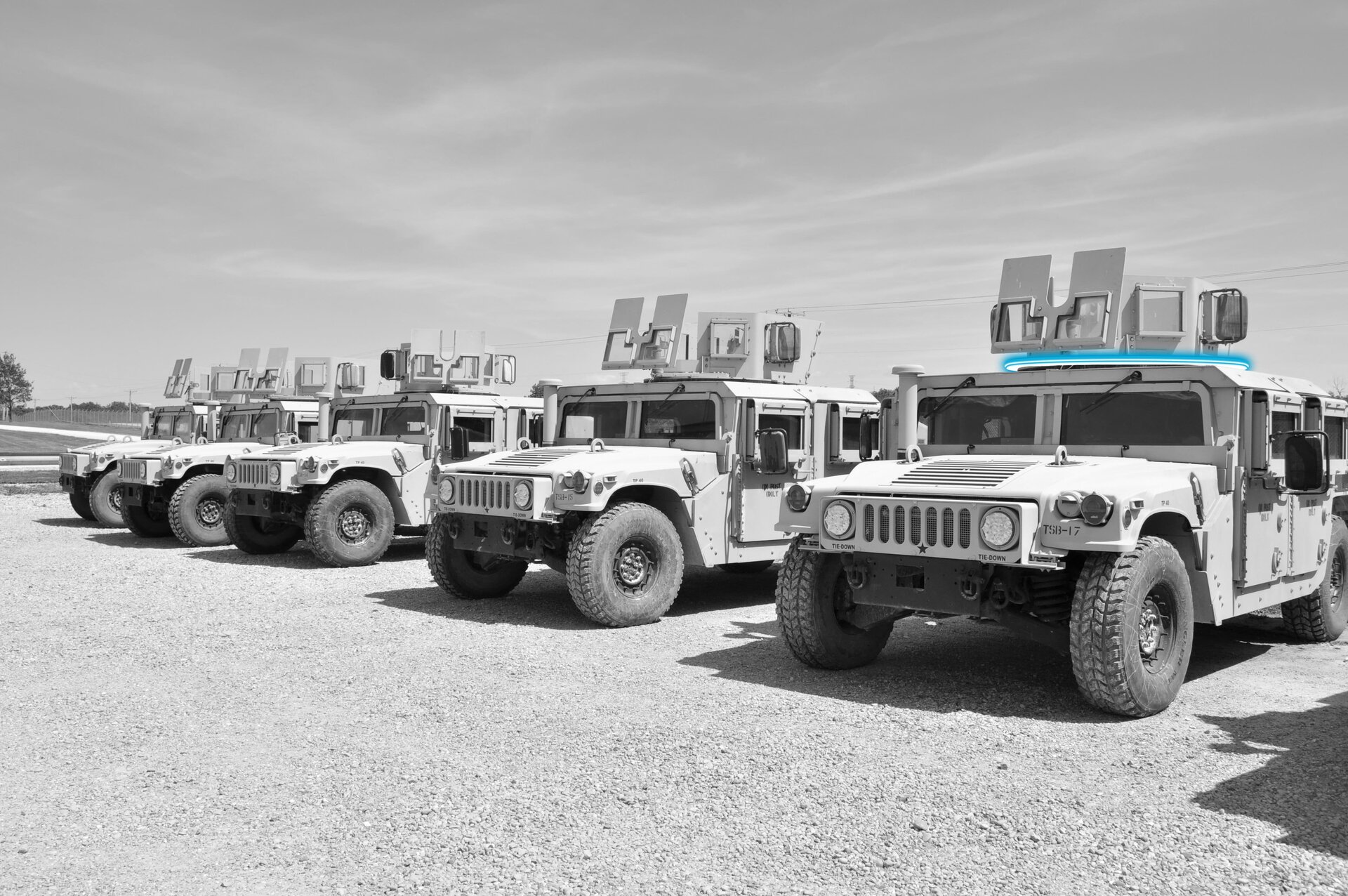

Swivel joints for rotating ring mounts

This area of application mainly uses internally or externally toothed slewing rings in customised designs - made from steel or hard-anodised aluminium materials. They are extremely resistant to impact and vibration, with low rotational resistance and a large centre clearance.

Swivel carriage on emergency vehicle

Your contact

Competent advice is the basis for a trusting and long-term partnership.

I would be happy to advise you personally

Arne Jankowski
Technical advisor

Tel: +49 7361 920 185

Send an e-mail

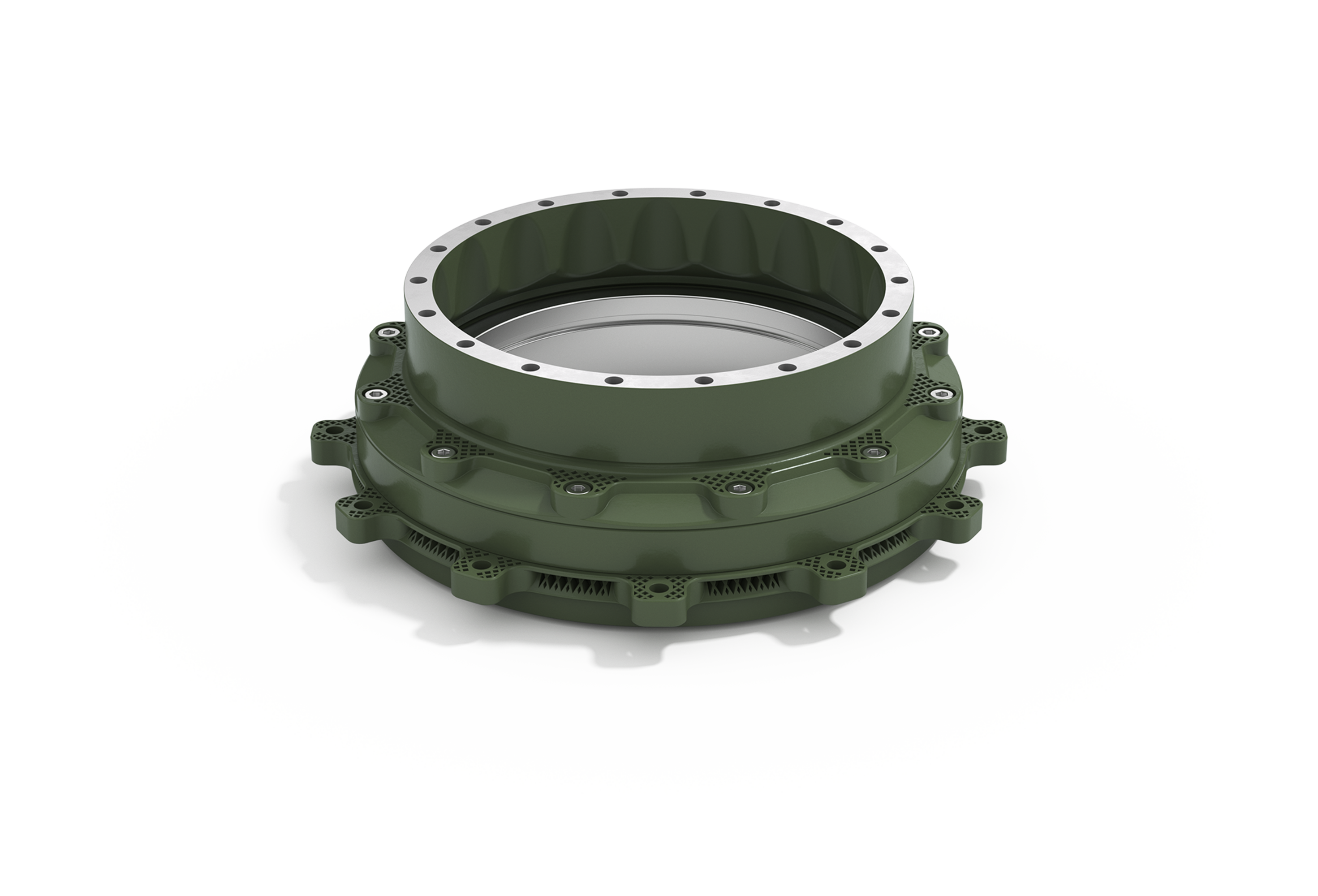

Azimuth & elevation bearings for weapon stations

Various types of roller bearings and slewing rings are used for weapon stations - most of which are toothed. They are manufactured either from steel or high-strength aluminium materials and equipped with individual sealing concepts.

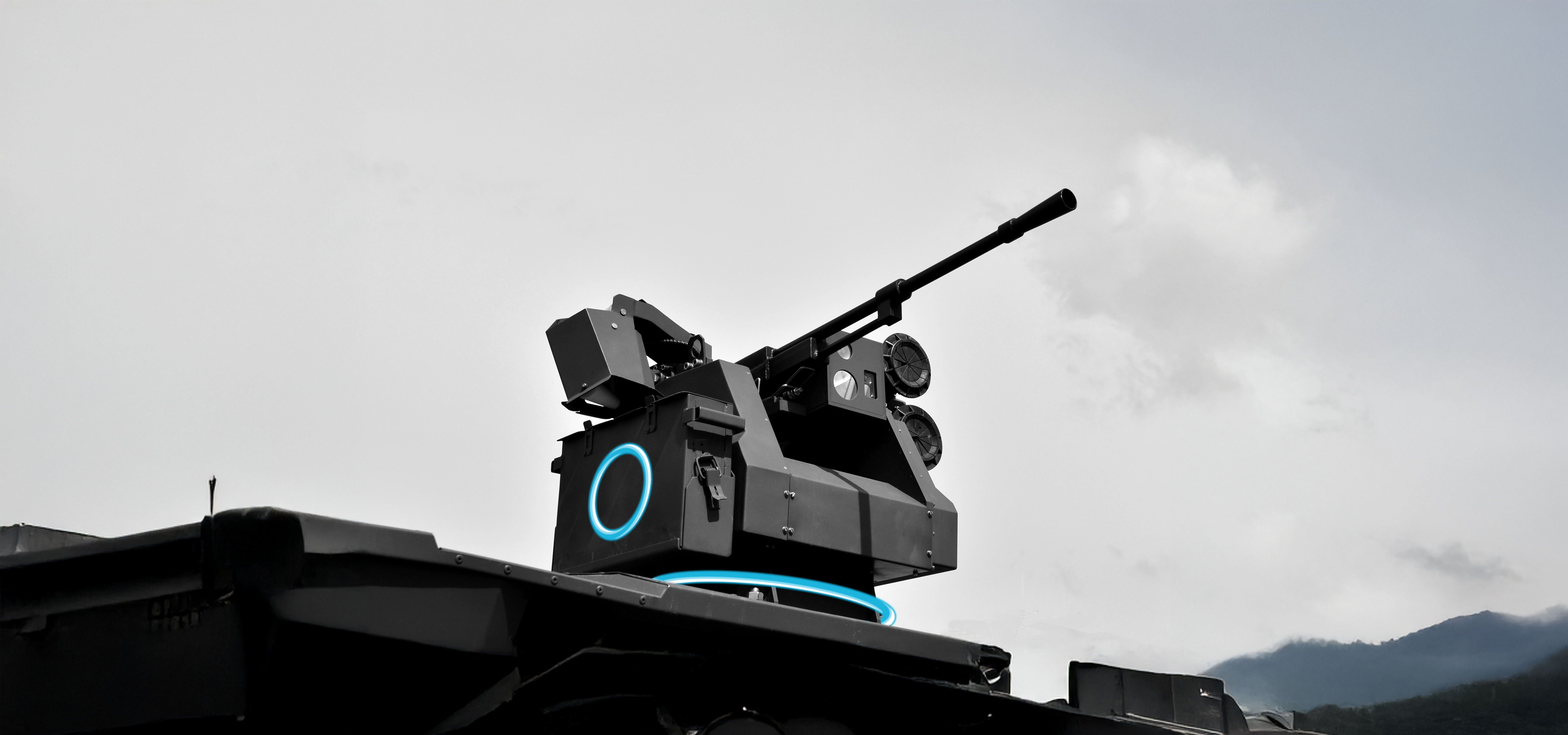

Weapon station application example

Roller bearings from Franke - as individual as your requirements

Equipped for all situations.

Possibilities instead of requirements

[Translate to Englisch:] Franke Wälzlager bieten viele Möglichkeiten der umschließenden Konstruktion.

[Translate to Englisch:] Wälzlager von Franke finden in den unterschiedlichsten Konstruktionen ihren Platz.

[Translate to Englisch:] Die umschließende Konstruktion ist frei wählbar, da das Franke Wälzlager die Hauptlast aufnimmt.

[Translate to Englisch:] Wälzlager von Franke sind in kompakten Konstruktionen einsetzbar.

[Translate to Englisch:] Die Form der Konstruktion ist mit Wälzlagern von Franke nahezu frei wählbar.

[Translate to Englisch:] Beim Einsatz von Franke Wälzlagern lässt sich auch das Material der umschließenden Konstruktion frei wählen.

We have the right solution for almost every requirement.

Be it corrosion resistance, vibration and shock resistance or even a slewing ring in lightweight design - the customisation options are almost endless.

Discover your possibilities
